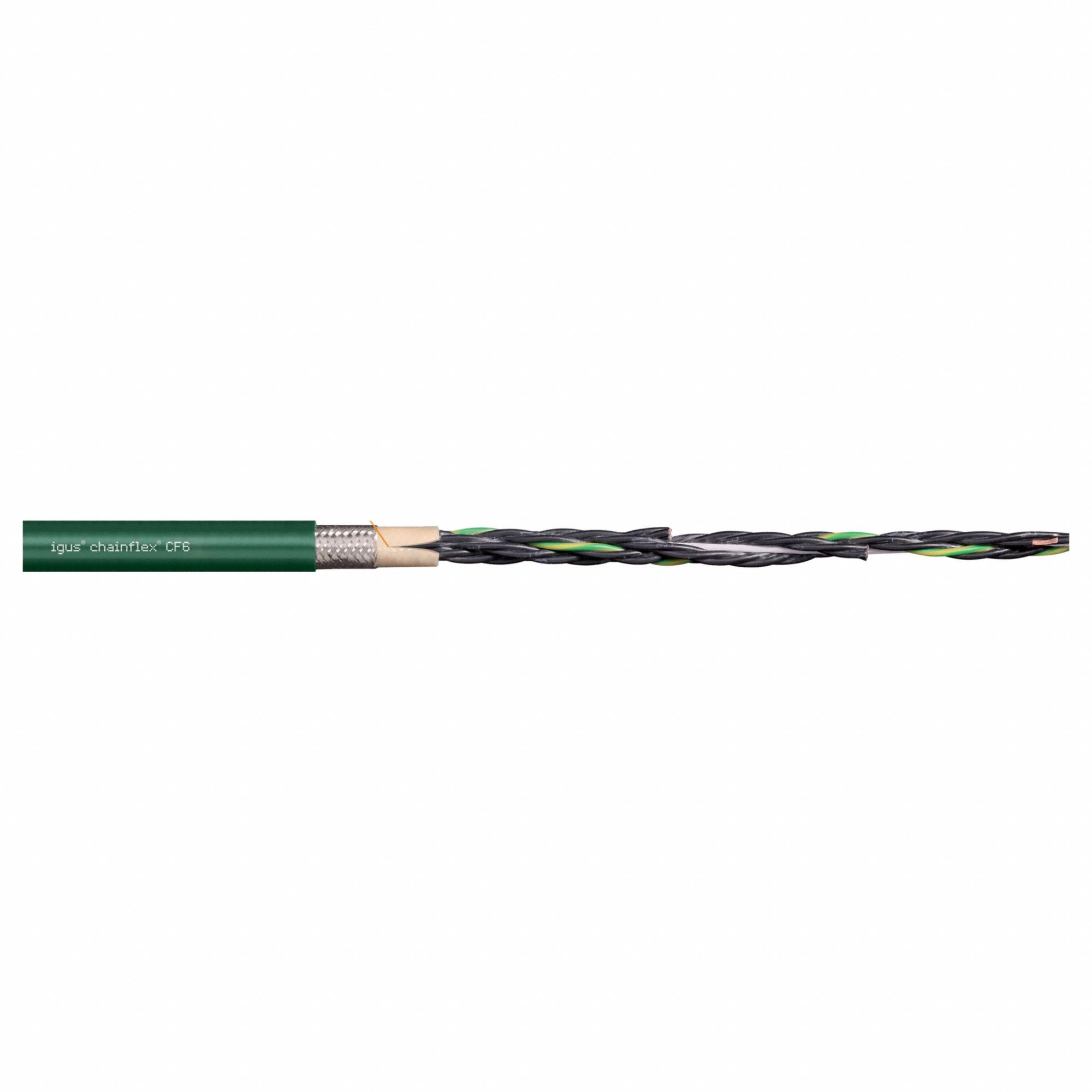

Chainflex 3G-OTH-54470 — Technical Specifications

Name: Chainflex 3G-OTH-54470 CHAINFLEX Control Cable: 20 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF6-05-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: DIN EN 50363-4-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the Chainflex CF6 series, featuring a single copper conductor with a PVC jacket rated at 300 V. It is UV/sunlight resistant and complies with DIN EN 50363-4-1, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN EN 50363-4-1
Conductors	1
Cable Series	CF6
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-05-02
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
