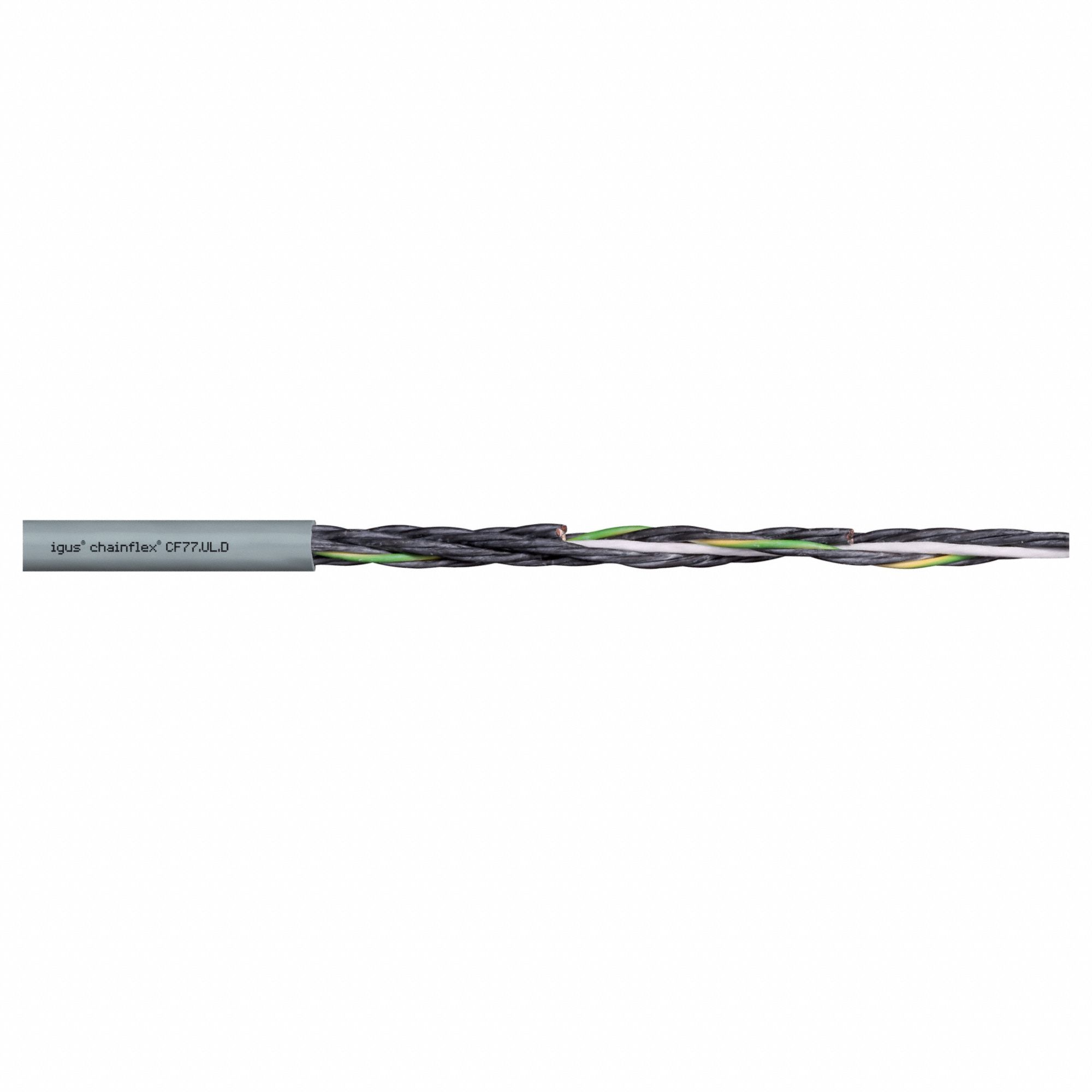

Chainflex 3G-OTH-51675 — Technical Specifications

Name: Chainflex 3G-OTH-51675 CHAINFLEX Control Cable: 24 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL-02-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG (SKU 801JR8) is a continuous flexing control cable from the Chainflex series, model CF77-UL. This 4-conductor, 24 AWG cable features a copper conductor, PUR jacket, and 300 V rating, with a single conductor configuration and an integrated ground. It is UV/sunlight resistant and meets PV 3.10.7 Status 1992 standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	4
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-02-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
