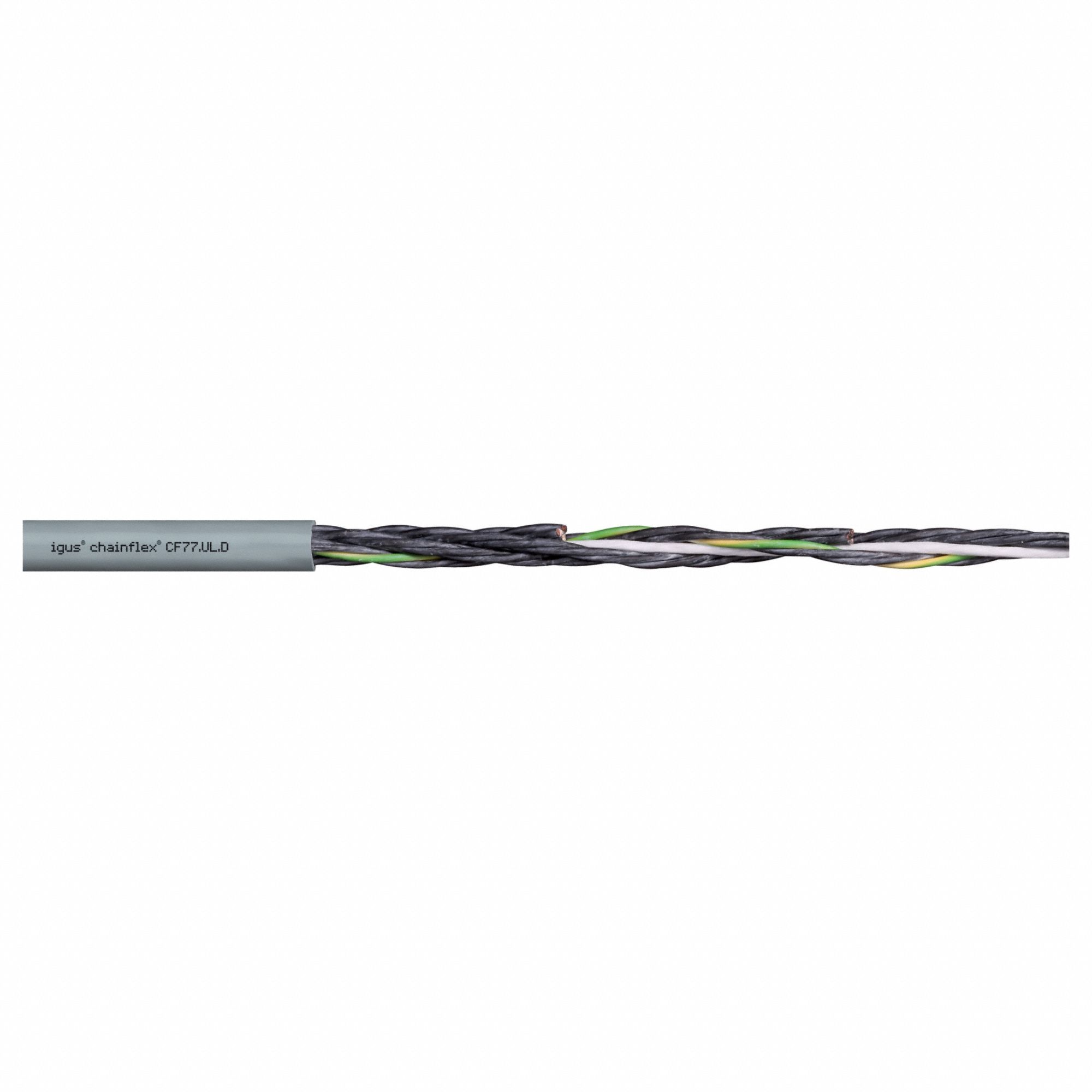

Chainflex 3G-OTH-54237 — Technical Specifications
The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the CF77-UL series, featuring 7 conductors of single copper wire with a PUR jacket and a 1,000 V rating. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications. This cable complies with IPA 14644-1 standards and is sold by the foot.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, PUR Jacket, 1,000 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | IPA 14644-1 |
| Conductors | 7 |
| Cable Series | CF77-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Resistance Properties | Oil and Grease Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF77-UL-05-07 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
