Chainflex 3G-OTH-54034 — Technical Specifications

Name: Chainflex 3G-OTH-54034 CHAINFLEX Control Cable: 16 AWG, 36 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-15-36). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CTP C-DE.PB49.B.00416.
Brand: Chainflex

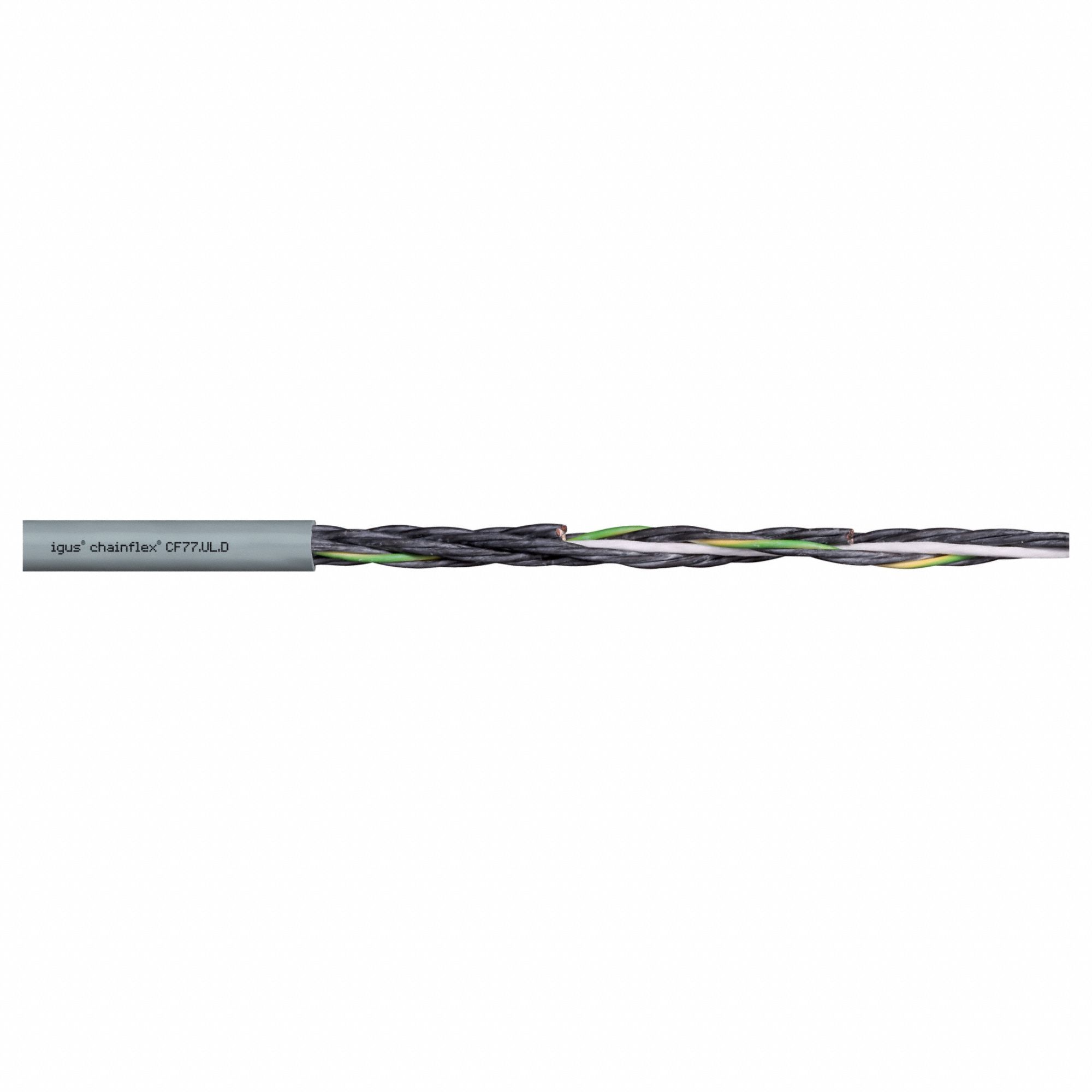

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex series, model CF77-UL-15-36, featuring 36 conductors of single copper wire with a PUR jacket rated at 1,000 V. It includes a ground conductor and offers UV/sunlight resistance, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications, complying with standard CTP C-DE.PB49.B.00416.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CTP C-DE.PB49.B.00416
Conductors	36
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-15-36
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
