Chainflex 3G-OTH-54048 — Technical Specifications

Name: Chainflex 3G-OTH-54048 CHAINFLEX Control Cable: 12 AWG, 5 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-40-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: NFPA 79-2012 Chapter 12.9.
Brand: Chainflex

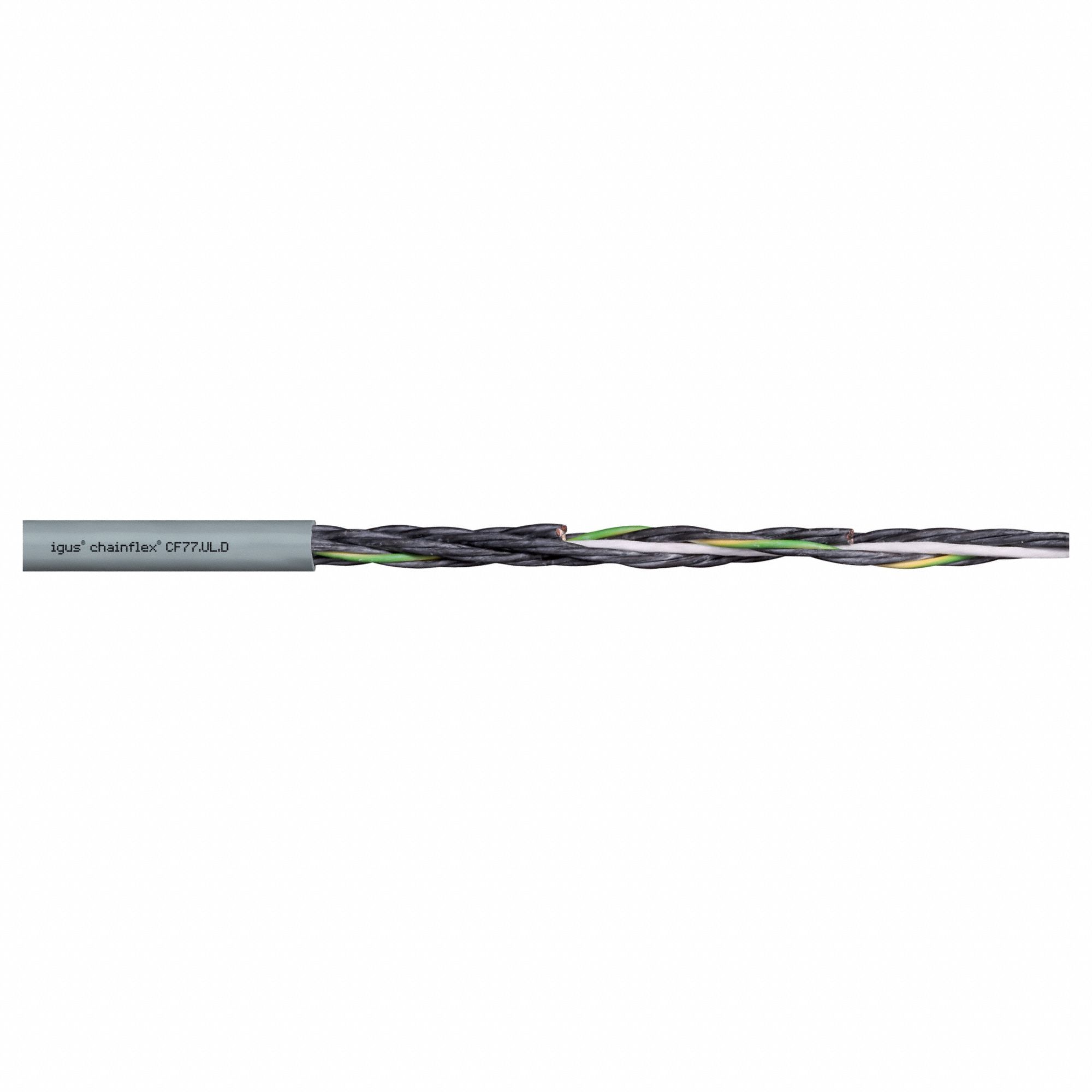

The CHAINFLEX Control Cable: 12 AWG (SKU 801JV8) is a continuous flexing control cable from the Chainflex series, model CF77-UL-40-05. This 5-conductor, single-conductor-configuration cable features a copper conductor, PUR jacket, includes a ground, and is rated at 1,000 V. It meets NFPA 79-2012 Chapter 12.9 standards, is coolant resistant, and has minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	NFPA 79-2012 Chapter 12.9
Conductors	5
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-40-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
