Chainflex 3G-OTH-48491 — Technical Specifications

Name: Chainflex 3G-OTH-48491 CHAINFLEX Control Cable: 16 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF890-15-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: CE 2014/35/EU.
Brand: Chainflex

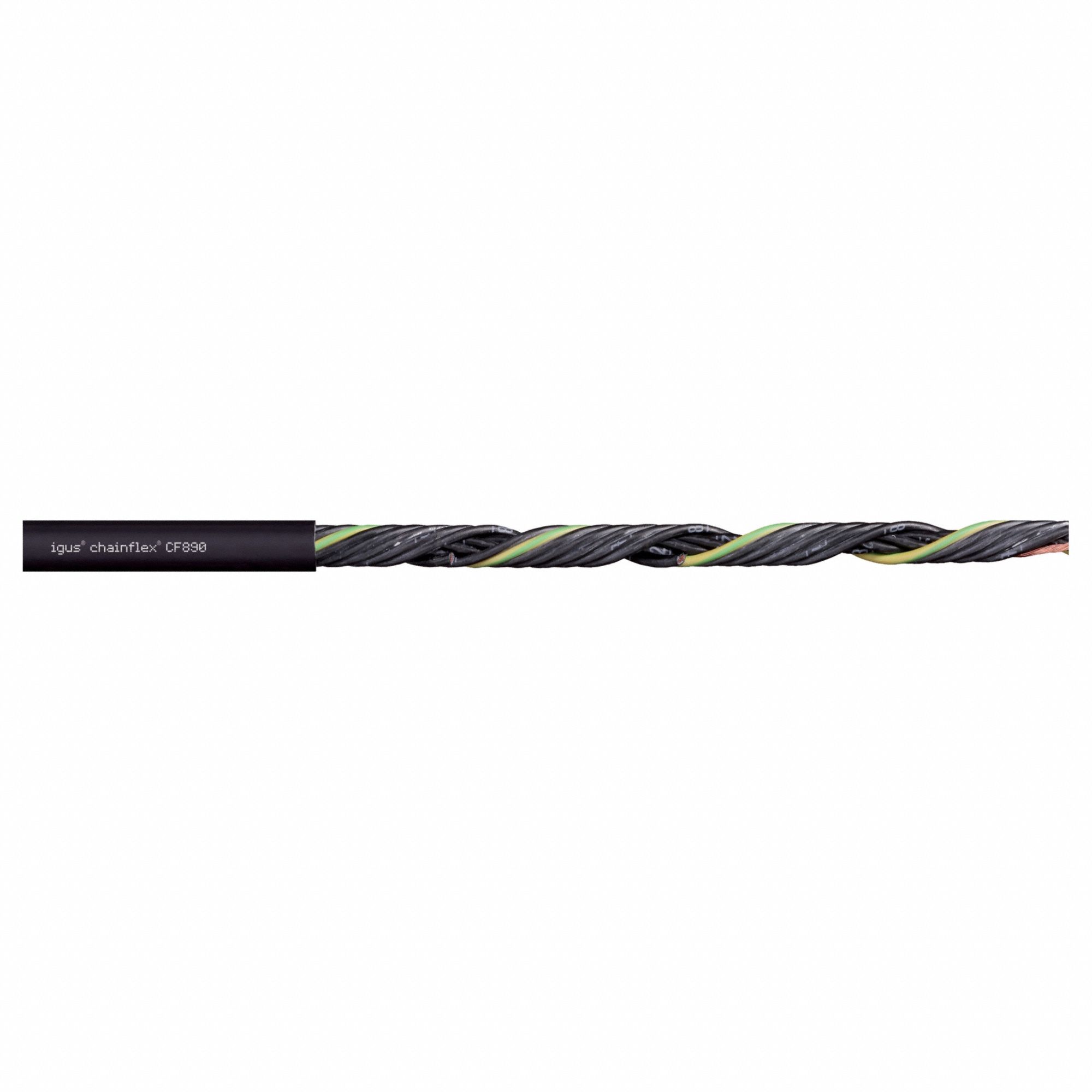

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex CF890 series, featuring 4 copper conductors with a PUR jacket rated at 600 V. It includes a ground conductor and is flame retardant, with minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications. This cable complies with CE 2014/35/EU standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	4
Cable Series	CF890
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF890-15-04
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
