Chainflex 3G-OTH-52298 — Technical Specifications

Name: Chainflex 3G-OTH-52298 CHAINFLEX Control Cable: 20 AWG, 3 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-05-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

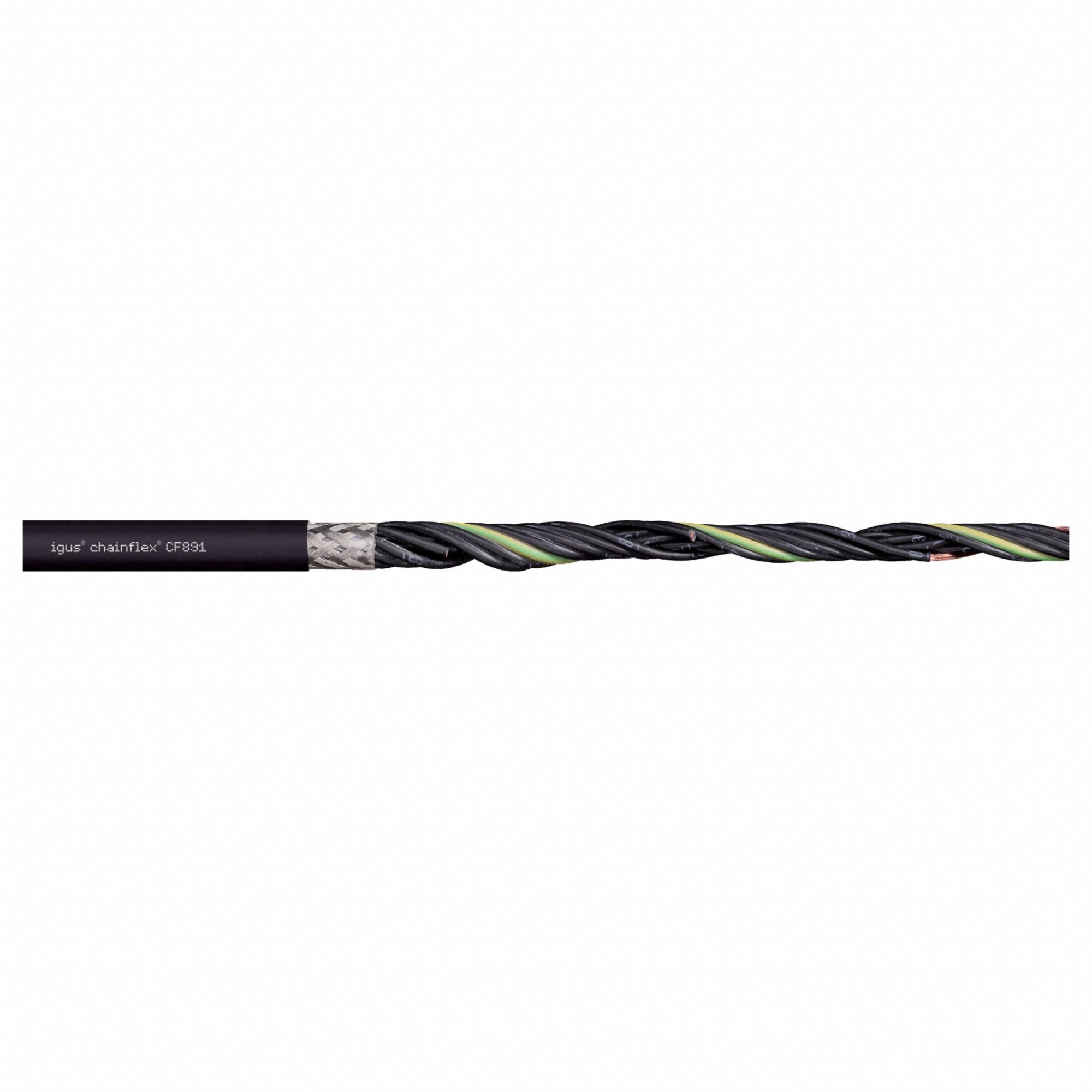

The CHAINFLEX Control Cable: 20 AWG (SKU 801KA7, MPN CF891-05-03) is a continuous flexing control cable from the Chainflex series. It features 3 conductors of single copper wire, a PUR jacket, and a 600 V rating, with a ground conductor included. The cable meets FT-1 flame retardant standards and has minimum bend radius factors of 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	3
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF891-05-03
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
