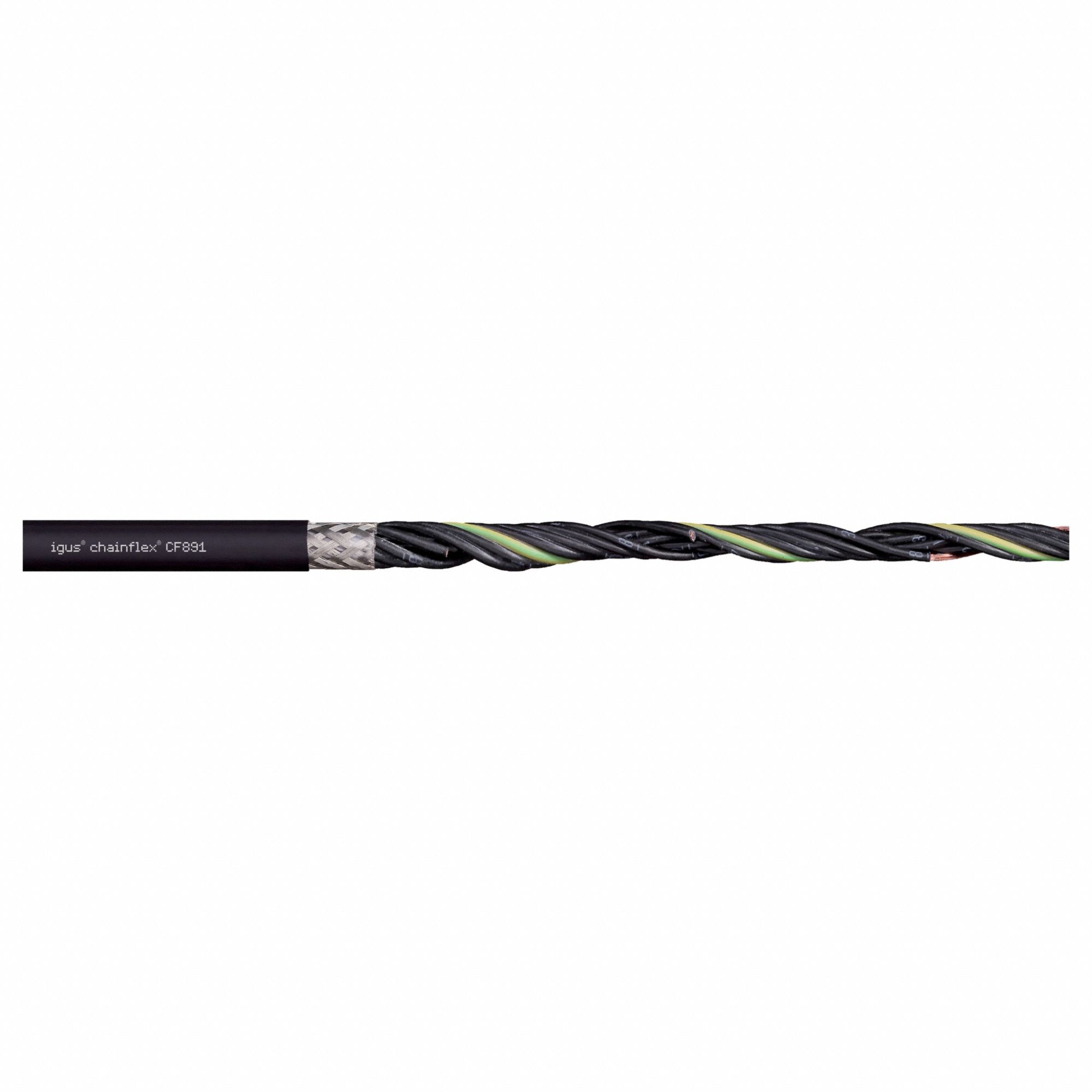

Chainflex 3G-OTH-51875 — Technical Specifications

Name: Chainflex 3G-OTH-51875 CHAINFLEX Control Cable: 17 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 600 V (MPN CF891-10-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Flame Retardant; Standards: EAC TC RU C-DE. ME77.B.01560.
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF891-10-07, featuring 7 conductors of single copper wire with a PUR jacket and 600 V rating. It includes a ground conductor, is flame retardant, and meets EAC TC RU C-DE. ME77.B.01560 standards. Minimum bend radius factors are 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	EAC TC RU C-DE. ME77.B.01560
Conductors	7
Cable Series	CF891
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF891-10-07
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
