Chainflex 3G-OTH-52053 — Technical Specifications

Name: Chainflex 3G-OTH-52053 CHAINFLEX Control Cable: 24 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-02-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: IEC 60332-1-2.
Brand: Chainflex

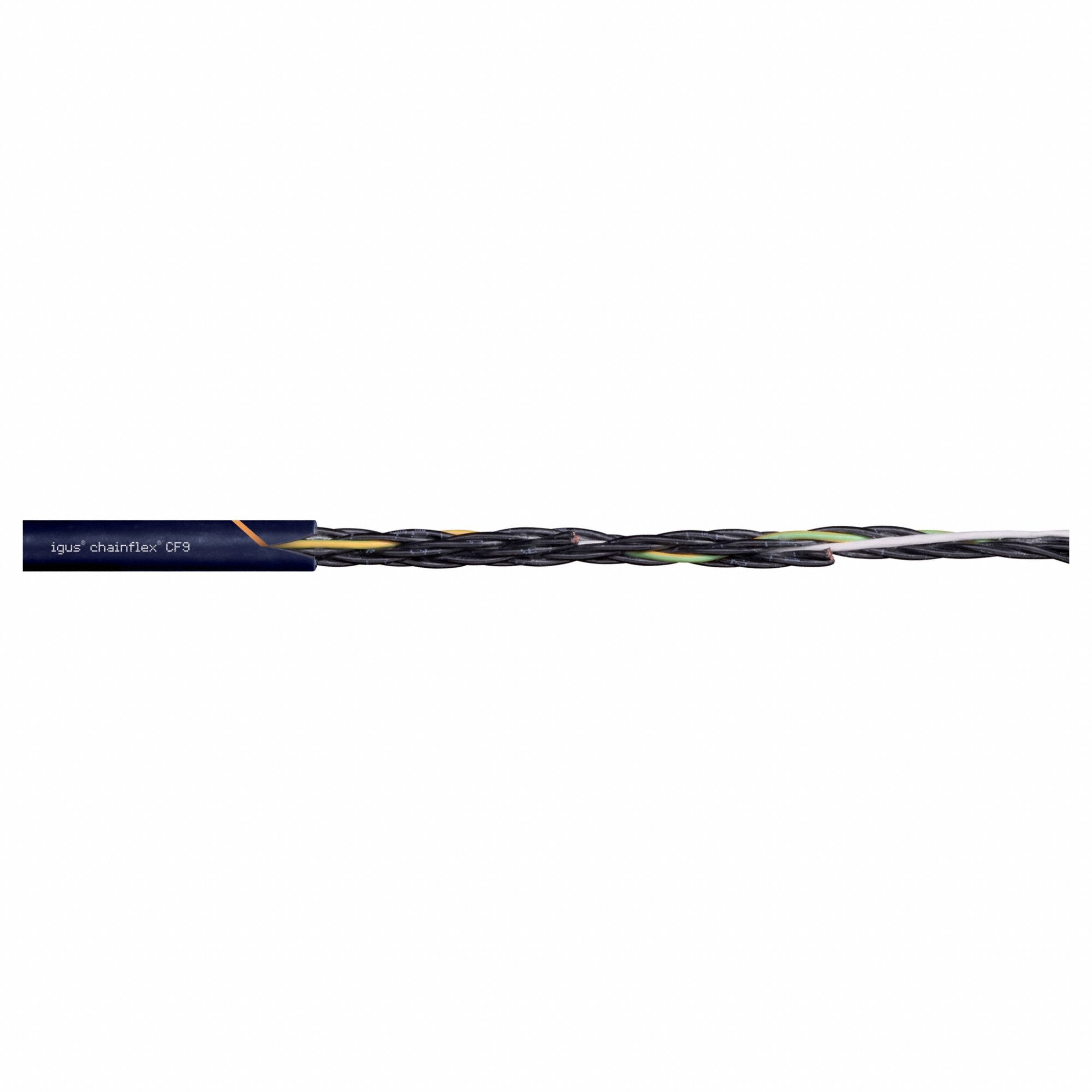

The CHAINFLEX Control Cable: 24 AWG (SKU 801KF9) is a continuous flexing control cable from the Chainflex CF9 series, featuring 25 conductors of single-strand copper with a TPR jacket rated at 300 V. It is flame retardant per IEC 60332-1-2, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications, and does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	25
Cable Series	CF9
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-02-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
