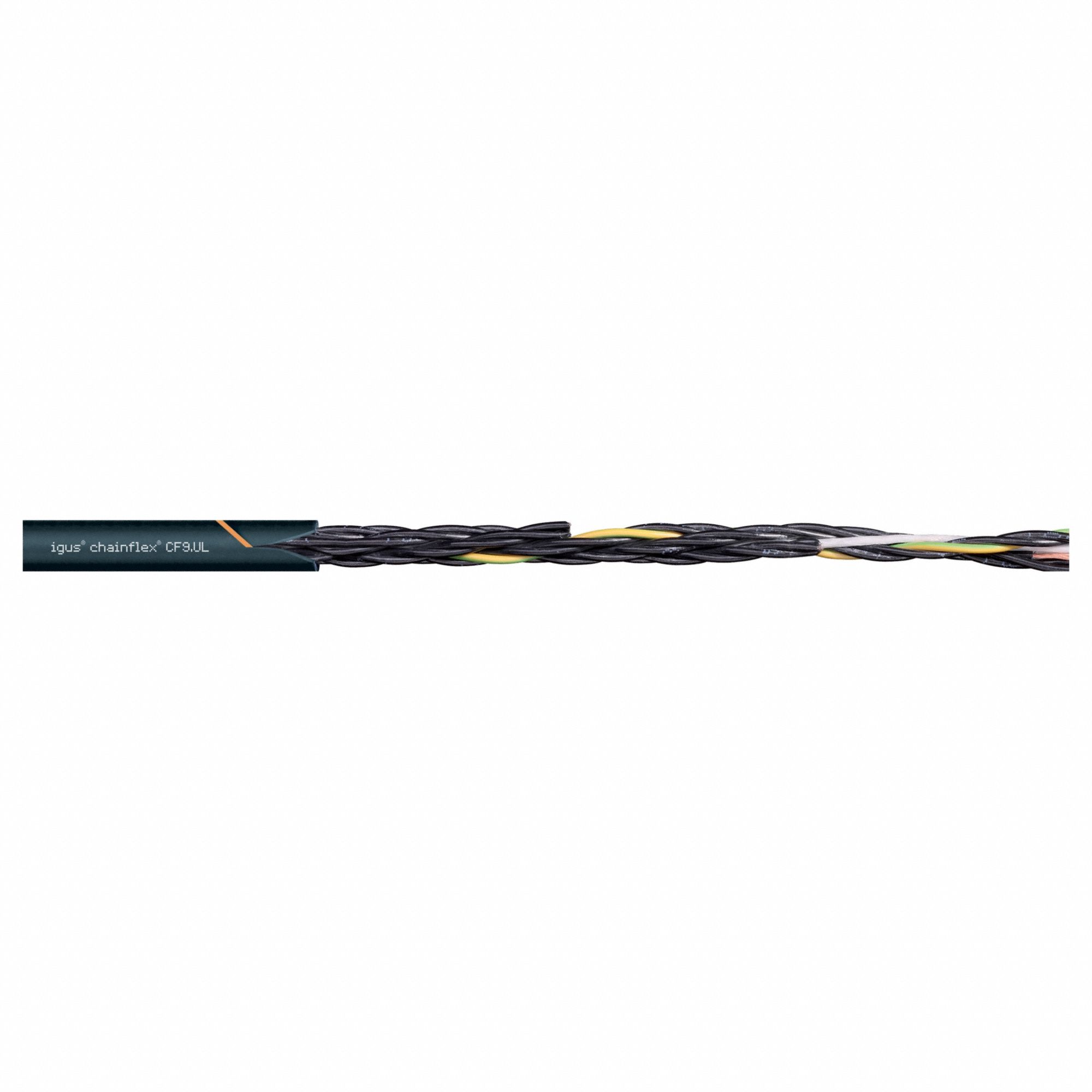

Chainflex 3G-OTH-51767 — Technical Specifications
The CHAINFLEX Control Cable: 20 AWG is a continuous flexing control cable from the CF9-UL series, featuring a single copper conductor with a TPR jacket rated for 1,000 V. It is coolant resistant and meets IPA 14644-1 standards, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications. This cable does not include a ground conductor.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Order by the Foot, TPR Jacket, 1,000 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | IPA 14644-1 |
| Conductors | 1 |
| Cable Series | CF9-UL |
| Product Type | Control Cable |
| Includes Ground | No |
| Conductor Material | Copper |
| Resistance Properties | Coolant Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF9-UL-05-02 |
| Minimum Bend Radius Factor - Fixed | 3 x OD |
| Minimum Bend Radius Factor - E-Chain | 5 x OD |
| Minimum Bend Radius Factor - Flexible | 4 x OD |
