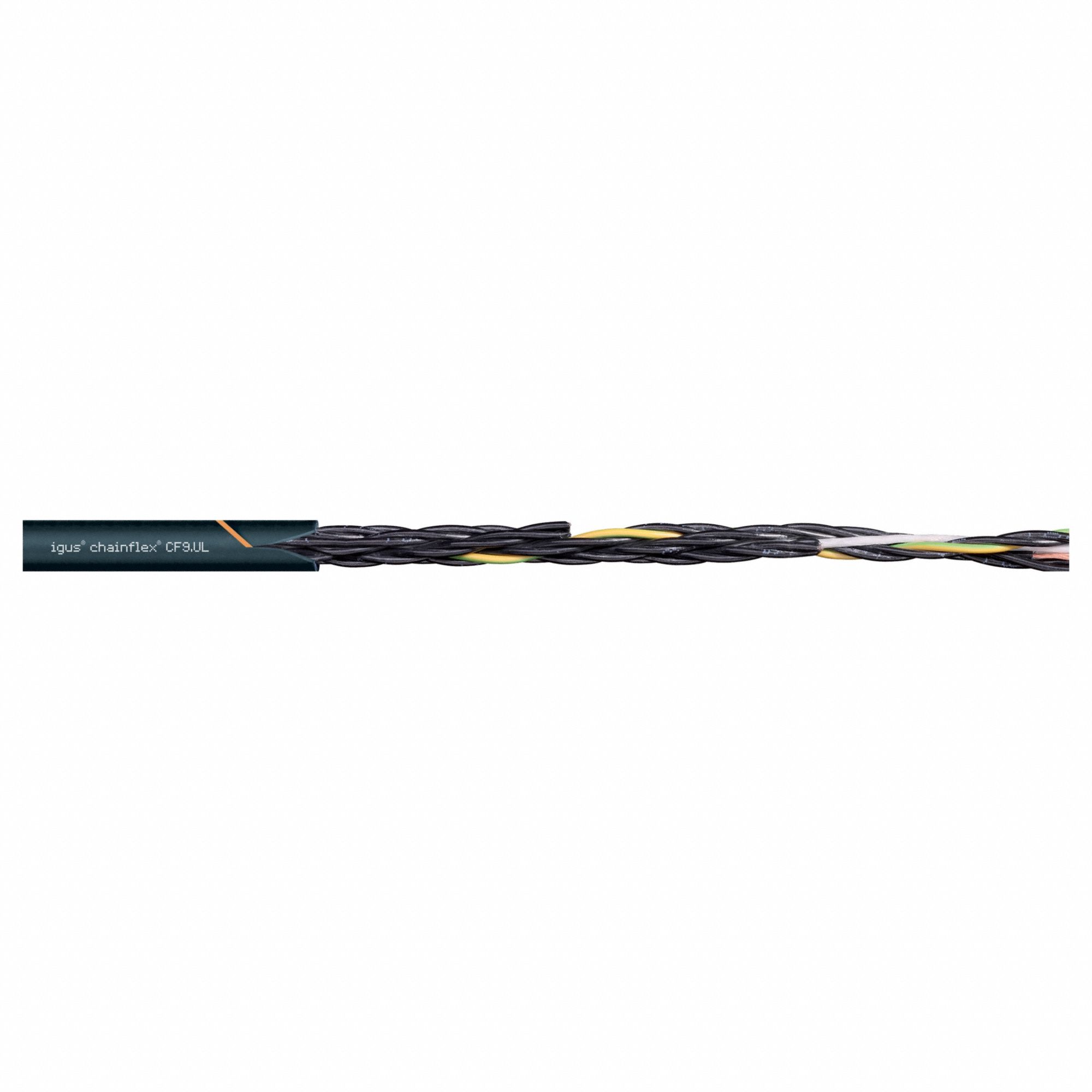

Chainflex 3G-OTH-52125 — Technical Specifications

Name: Chainflex 3G-OTH-52125 CHAINFLEX Control Cable: 14 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF9-UL-25-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: IPA 14644-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF9-UL series, featuring 25 copper conductors with a single conductor configuration and a TPR jacket rated for 1,000 V. It includes a ground conductor and is coolant resistant, with minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications. This cable meets IPA 14644-1 standards and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	25
Cable Series	CF9-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-UL-25-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
