Chainflex 3G-OTH-49421 — Technical Specifications

Name: Chainflex 3G-OTH-49421 CHAINFLEX Measuring System Cable: Green, TPR Jacket, 50 V Volt (MPN CF11-001-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(2) 26 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

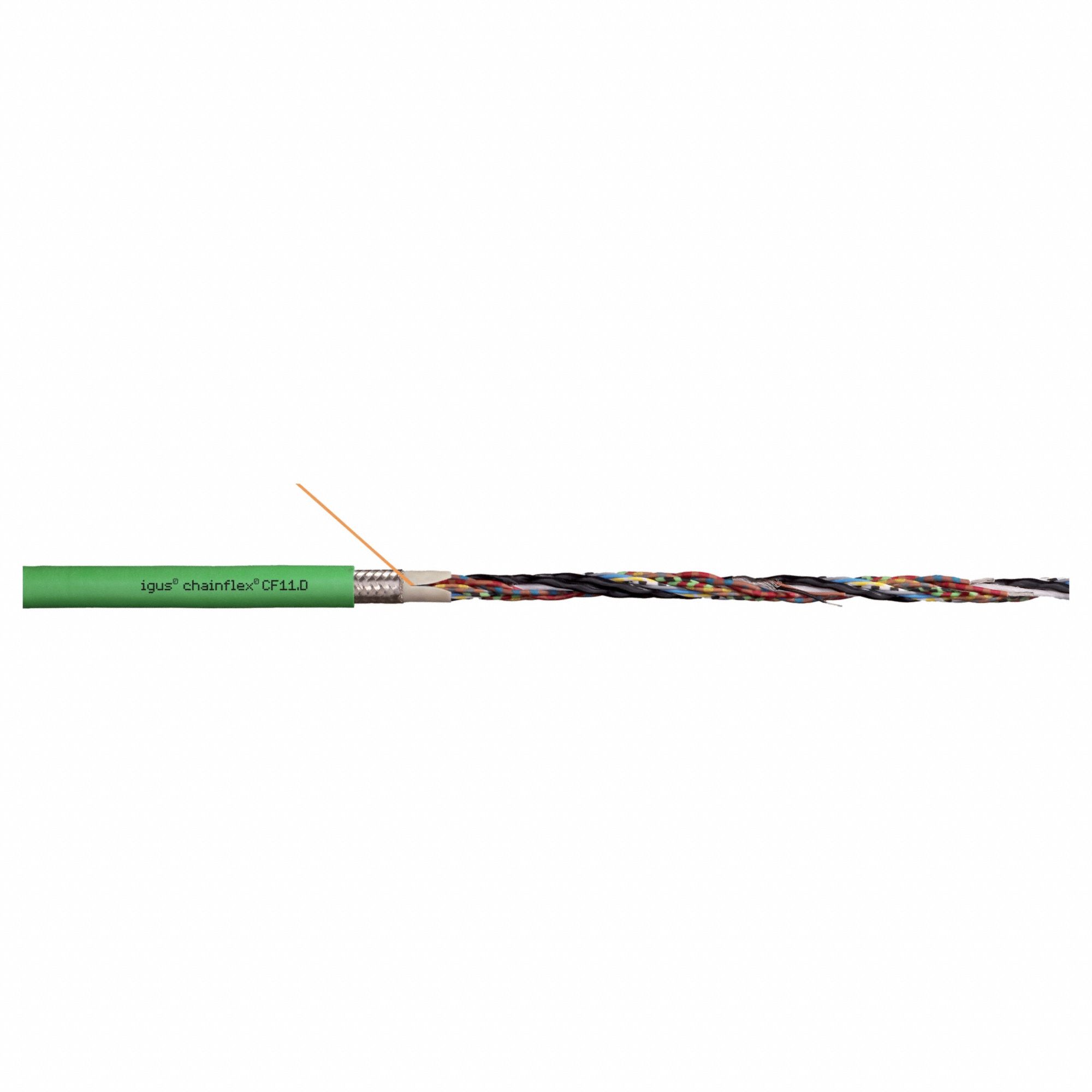

The CHAINFLEX Measuring System Cable (MPN CF11-001-D) is a servo motor feedback cable with a green TPR jacket rated for 50 V. Its conductor grouping consists of (3) shielded twisted pair 26 AWG, (4) 26 AWG, and (2) 26 AWG, with no included ground. The cable offers a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(2) 26 AWG
Manufacturer Part Number	CF11-001-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
