Chainflex 3G-OTH-49464 — Technical Specifications

Name: Chainflex 3G-OTH-49464 CHAINFLEX Measuring System Cable: Pr 24 AWG (0.25)/(5) 20 AWG (0.50), Green, TPR Jacket, 50 V Volt (MPN CF11-022-D). Key specifications — Conductor Grouping: Pair 24 AWG/(5) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

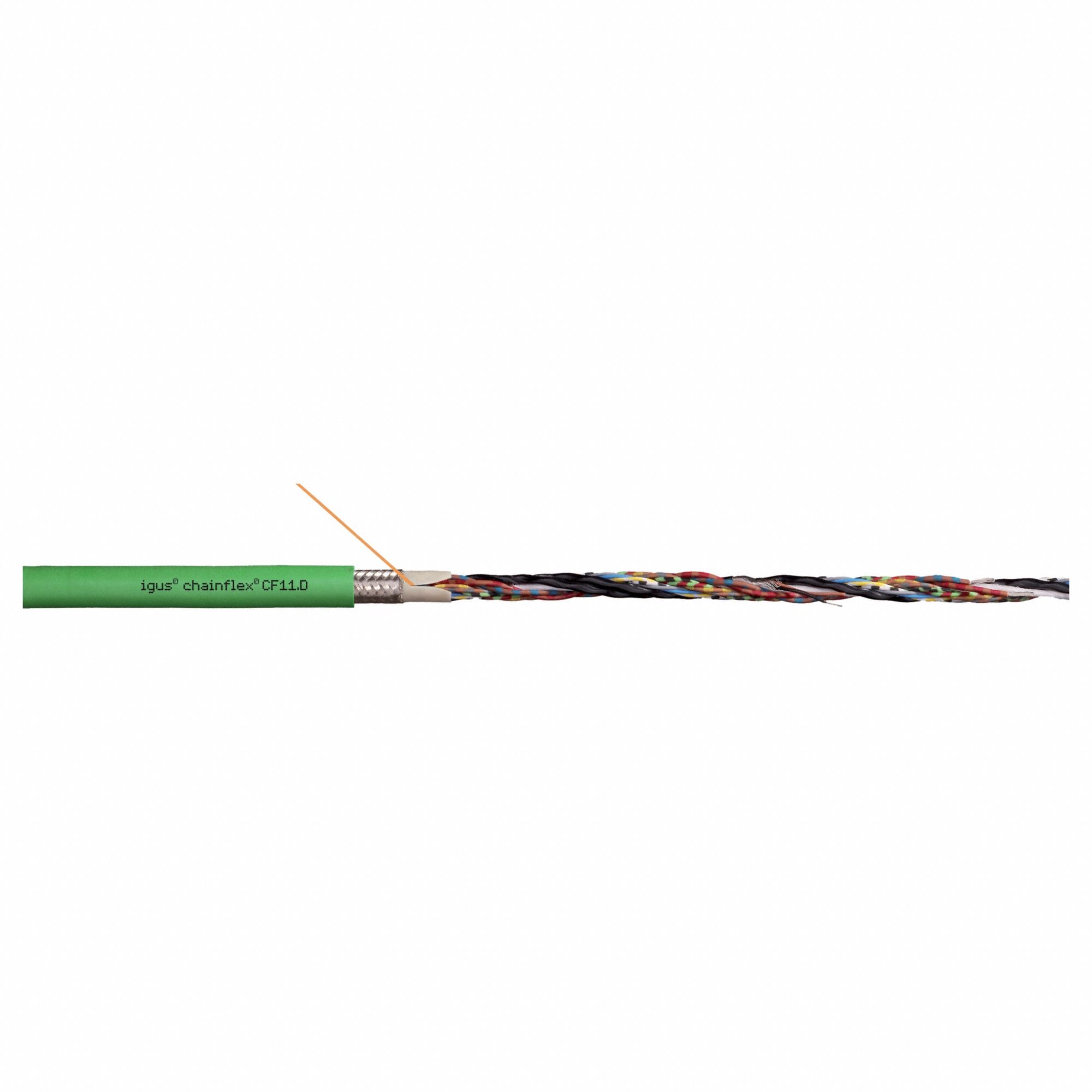

The CHAINFLEX Measuring System Cable: Pr 24 AWG (0.25)/(5) 20 AWG (0.50) is a servo motor feedback cable with a green TPR jacket and a 50 V rating. It features a conductor grouping of Pair 24 AWG/(5) 20 AWG, no included ground, and is available by the foot. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, TPR Jacket
Volt	50 V
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	Pair 24 AWG/(5) 20 AWG
Manufacturer Part Number	CF11-022-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
