Chainflex 3G-OTH-49504 — Technical Specifications

Name: Chainflex 3G-OTH-49504 CHAINFLEX Measuring System Cable: Green, TPR Jacket, 50 V Volt (MPN CF11-034-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(2) Pair 20 AWG; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

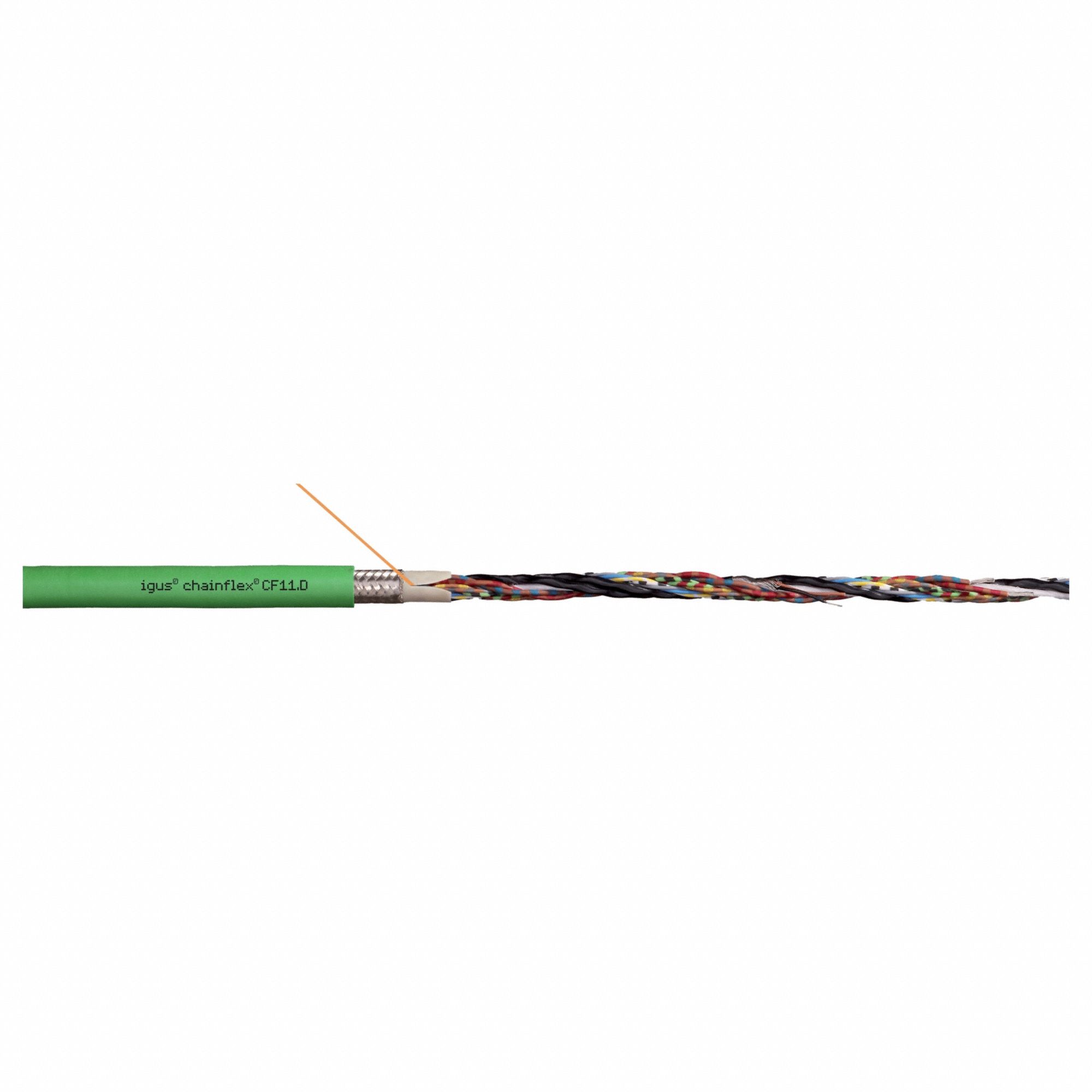

The CHAINFLEX Measuring System Cable (MPN CF11-034-D) is a servo motor feedback cable with a green TPR jacket rated for 50 V. It features a conductor grouping of (3) shielded twisted pair 26 AWG, (4) 26 AWG, and (2) pair 20 AWG, with a minimum bend radius factor of 4 x OD for fixed and 6 x OD for flexible applications. This cable is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(2) Pair 20 AWG
Manufacturer Part Number	CF11-034-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
