Chainflex 3G-OTH-49574 — Technical Specifications

Name: Chainflex 3G-OTH-49574 CHAINFLEX Measuring System Cable: Green, PUR Jacket, 50 V Volt (MPN CF111-006-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

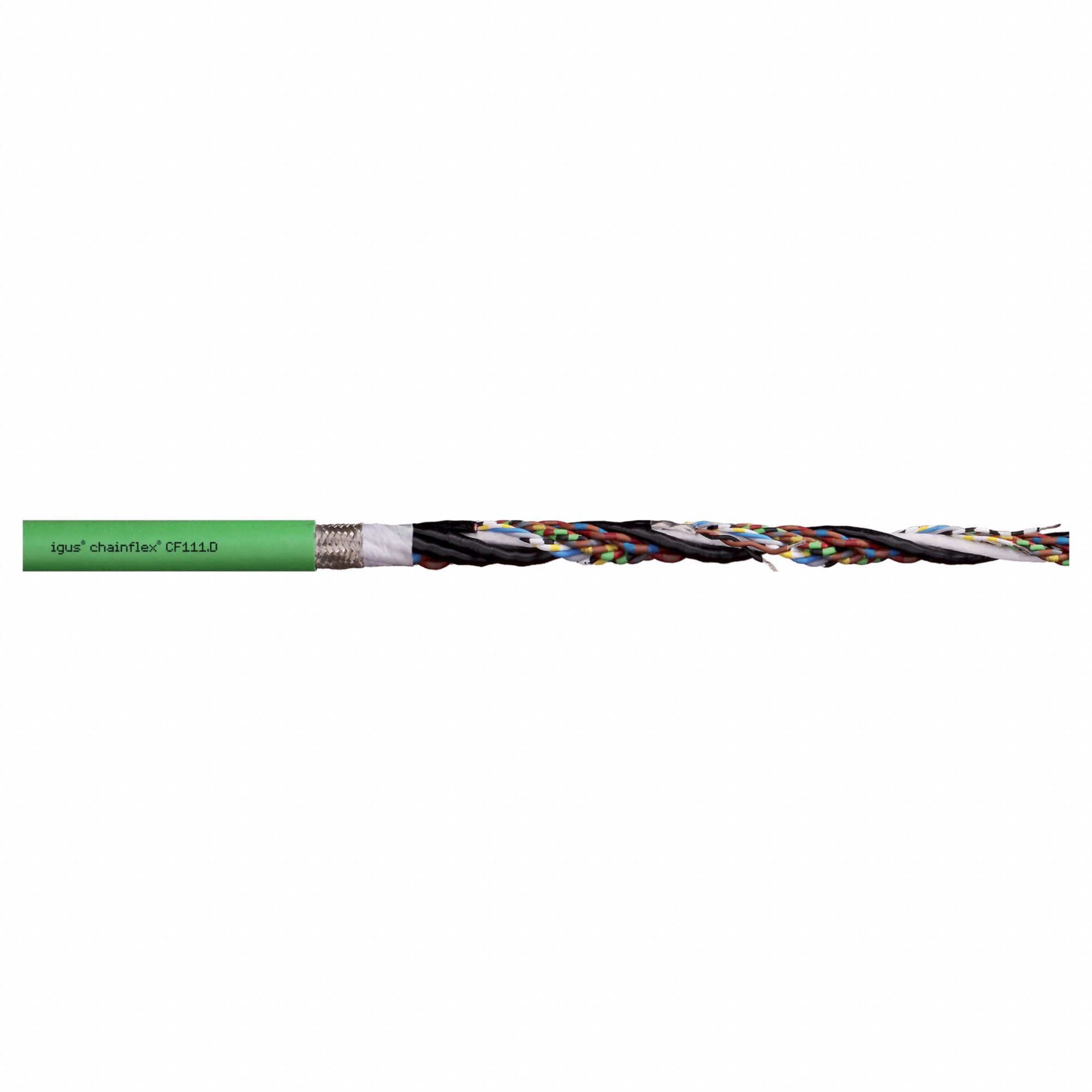

The CHAINFLEX Measuring System Cable (MPN CF111-006-D) is a servo motor feedback cable with a green PUR jacket rated for 50 V. Its conductor grouping consists of (3) shielded twisted pair 26 AWG, (4) 26 AWG, (4) 24 AWG, and (2) 20 AWG, with no ground included. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(4) 26 AWG/(4) 24 AWG/(2) 20 AWG
Manufacturer Part Number	CF111-006-D
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
