Chainflex 3G-OTH-49648 — Technical Specifications

Name: Chainflex 3G-OTH-49648 CHAINFLEX Measuring System Cable: Green, PUR Jacket, 50 V Volt (MPN CF113-012-D). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(3) Shielded 26 AWG/(6) 26 AWG/(2) 20 AWG; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

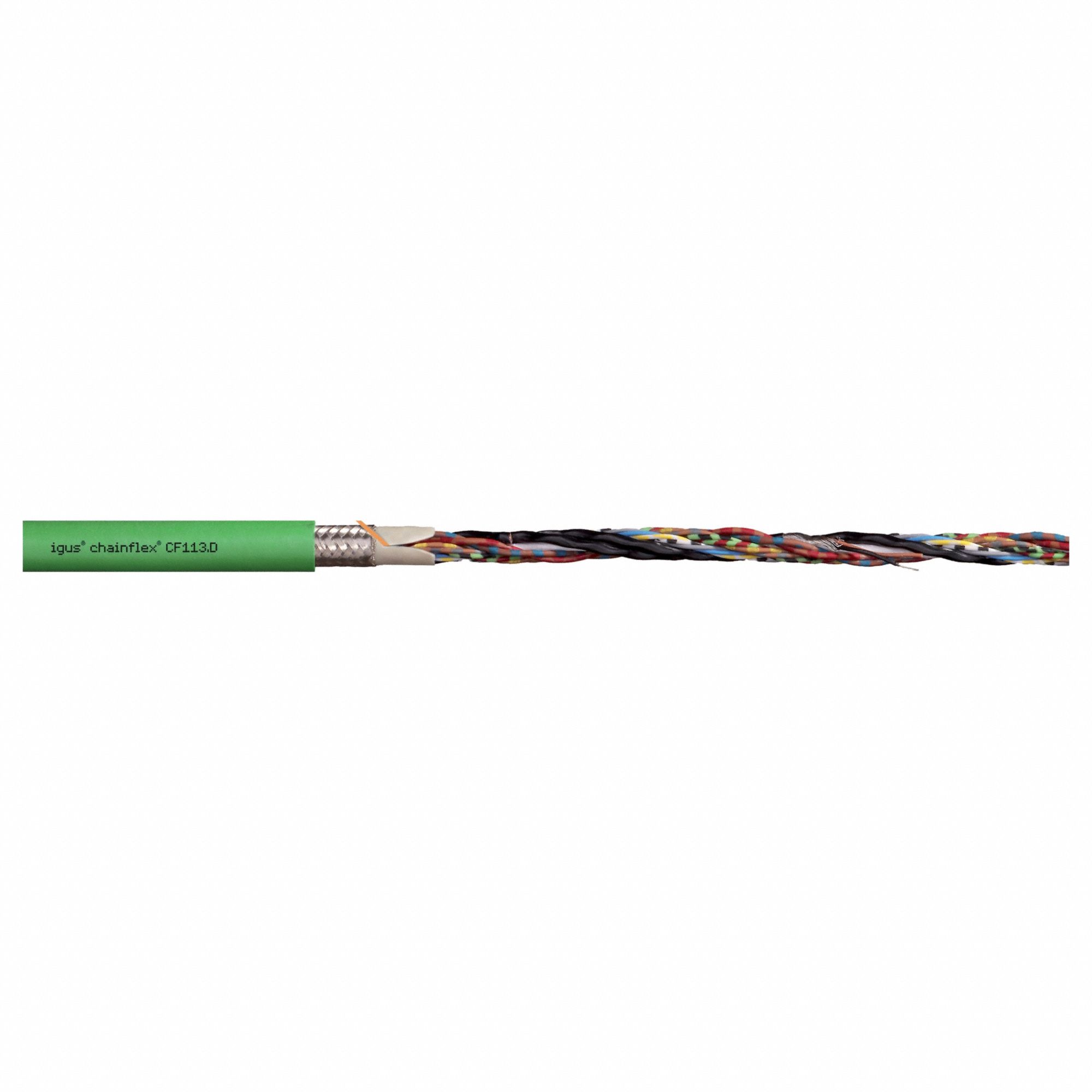

The CHAINFLEX Measuring System Cable (MPN CF113-012-D) is a servo motor feedback cable with a green PUR jacket rated for 50 V. Its conductor grouping includes (3) shielded twisted pair 26 AWG, (3) shielded 26 AWG, (6) 26 AWG, and (2) 20 AWG conductors. The cable has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(3) Shielded 26 AWG/(6) 26 AWG/(2) 20 AWG
Manufacturer Part Number	CF113-012-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
