Chainflex 3G-OTH-48368 — Technical Specifications

Name: Chainflex 3G-OTH-48368 CHAINFLEX Measuring System Cable: Green, PUR Jacket, 50 V Volt (MPN CF113-040-D). Key specifications — Conductor Grouping: (3) Four Pair 26 AWG/(2) 26 AWG/(2) 22 AWG/(2) 16 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Brand: CHAINFLEX.
Brand: Chainflex

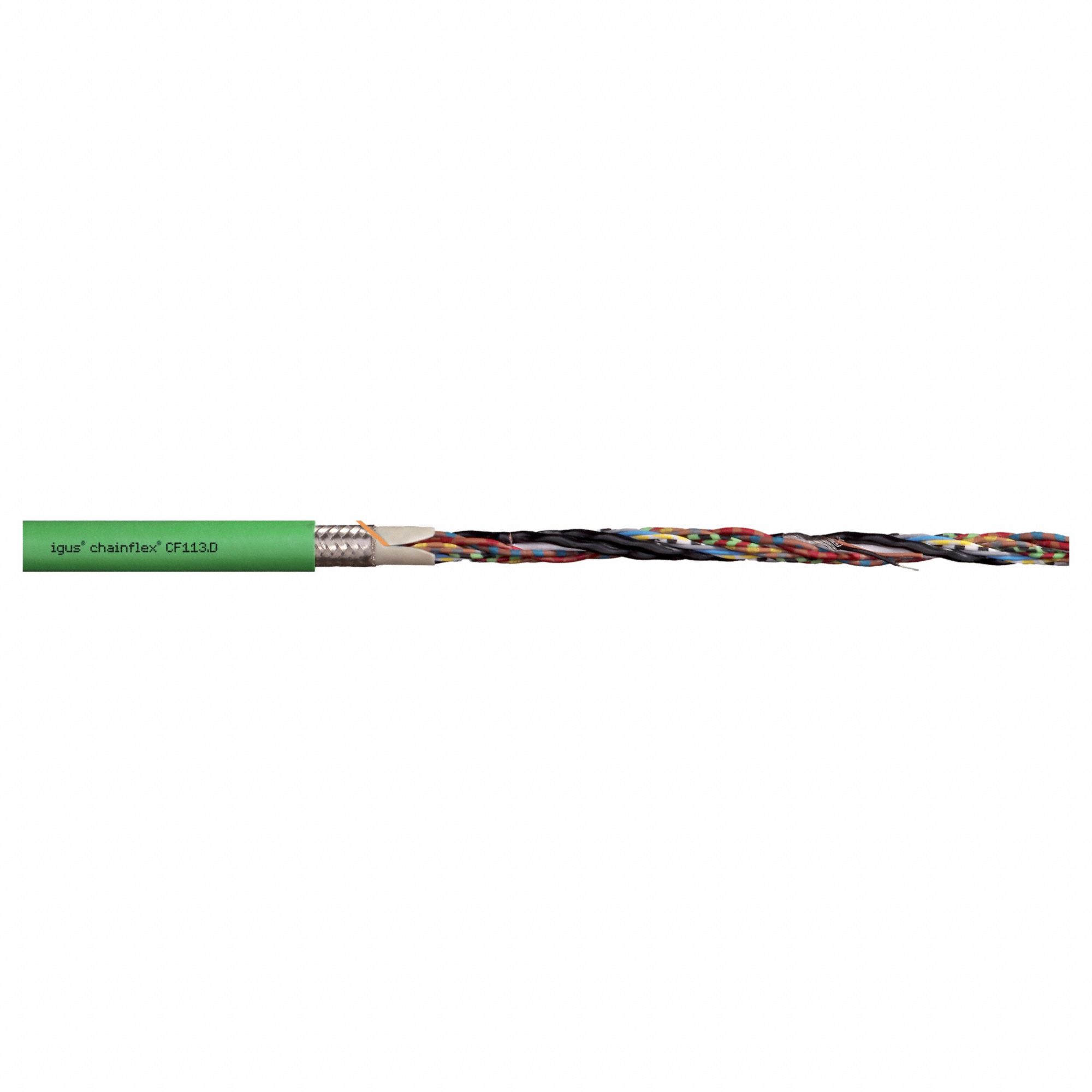

The CHAINFLEX Measuring System Cable (SKU 801L53, MPN CF113-040-D) is a servo motor feedback cable with a green PUR jacket rated for 50 V. Its conductor grouping consists of (3) four pair 26 AWG, (2) 26 AWG, (2) 22 AWG, and (2) 16 AWG, with no included ground. The cable is ordered by the foot and features a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Four Pair 26 AWG/(2) 26 AWG/(2) 22 AWG/(2) 16 AWG
Manufacturer Part Number	CF113-040-D
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
