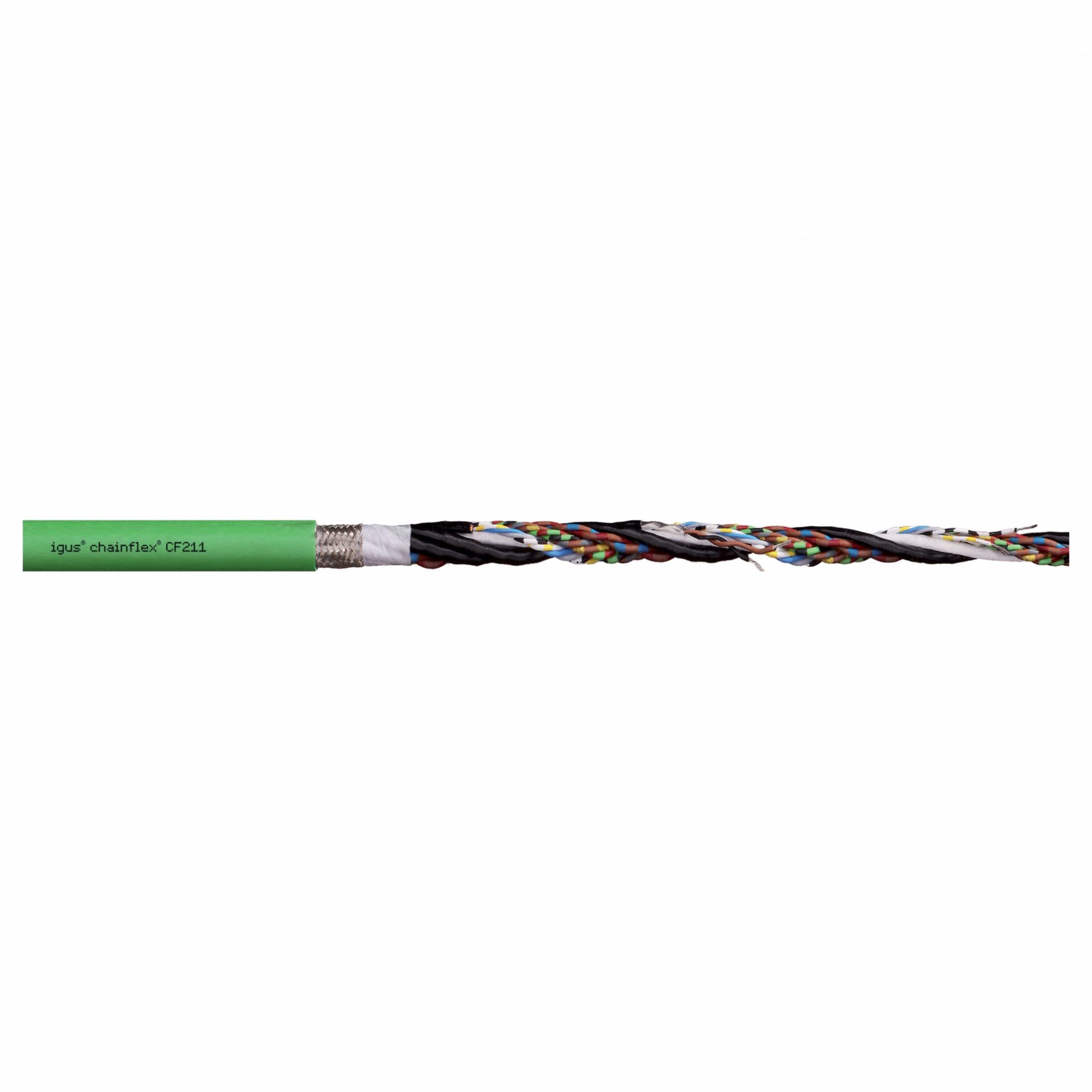

Chainflex 3G-OTH-47576 — Technical Specifications

Name: Chainflex 3G-OTH-47576 CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 26 AWG (0.14)/(2) SC 20 AWG (0.50), Green (MPN CF211-002). Key specifications — Conductor Grouping: (3) Shielded Twisted Pair 26 AWG/(2) SC 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Measuring System Cable (MPN CF211-002) is a servo motor feedback cable featuring (3) shielded twisted pair 26 AWG conductors and (2) SC 20 AWG conductors, without an included ground. It is available by the foot and has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(0.14)/(2) SC 20 AWG (0.50), Green
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(3) Shielded Twisted Pair 26 AWG/(2) SC 20 AWG
Manufacturer Part Number	CF211-002
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
