Chainflex 3G-OTH-48038 — Technical Specifications

Name: Chainflex 3G-OTH-48038 CHAINFLEX Measuring System Cable: (5) Pr 26 AWG (0.14)/(2) 20 AWG (0.50), Green, PVC Jacket (MPN CF211-027). Key specifications — Conductor Grouping: (5) Pair 26 AWG/(2) 20 AWG; Includes Ground: No; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

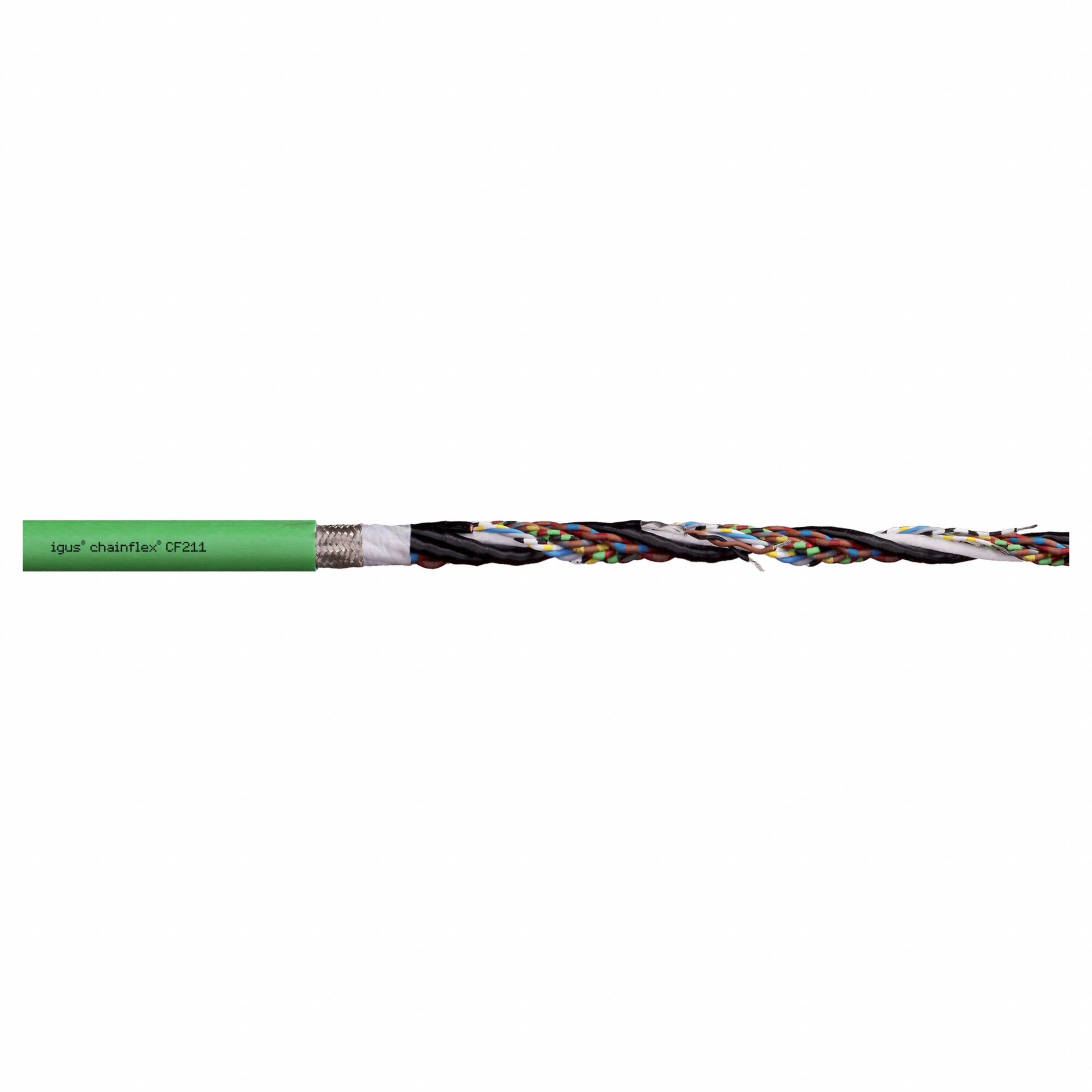

The CHAINFLEX Measuring System Cable (MPN CF211-027) is a servo motor feedback cable with a conductor grouping of (5) Pair 26 AWG/(2) 20 AWG, a green PVC jacket, and no included ground. It is available by the foot and features a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green, PVC Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	(5) Pair 26 AWG/(2) 20 AWG
Manufacturer Part Number	CF211-027
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
