Chainflex 3G-OTH-50511 — Technical Specifications

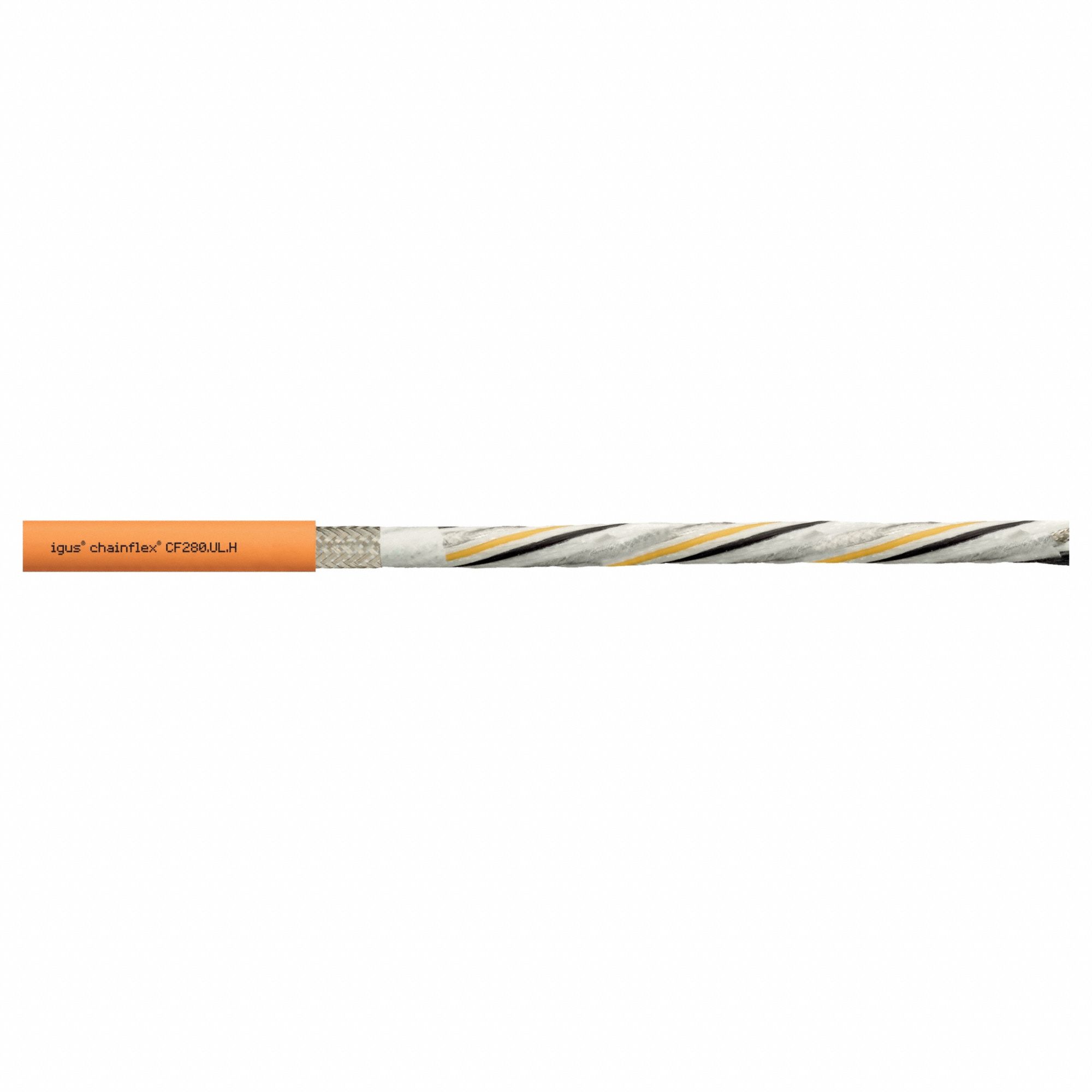

Name: Chainflex 3G-OTH-50511 CHAINFLEX Servo Motor Cable: Orange, PUR Jacket, 1,000 V Volt (MPN CF280ULH101104). Key specifications — Conductor Grouping: (4) 17 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Pair 22 AWG; Includes Ground: Yes; Overall Length: Order by the Foot; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Servo Motor Power Cable (SKU 801LU2, MPN CF280ULH101104) features a PUR jacket and is rated for 1,000 V. Its conductor grouping includes (4) 17 AWG, a shielded twisted pair 18 AWG, and a shielded twisted pair 22 AWG, with an integrated ground. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible routing, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(4) 17 AWG/Shielded Twisted Pair 18 AWG/Shielded Twisted Pair 22 AWG
Manufacturer Part Number	CF280ULH101104
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
