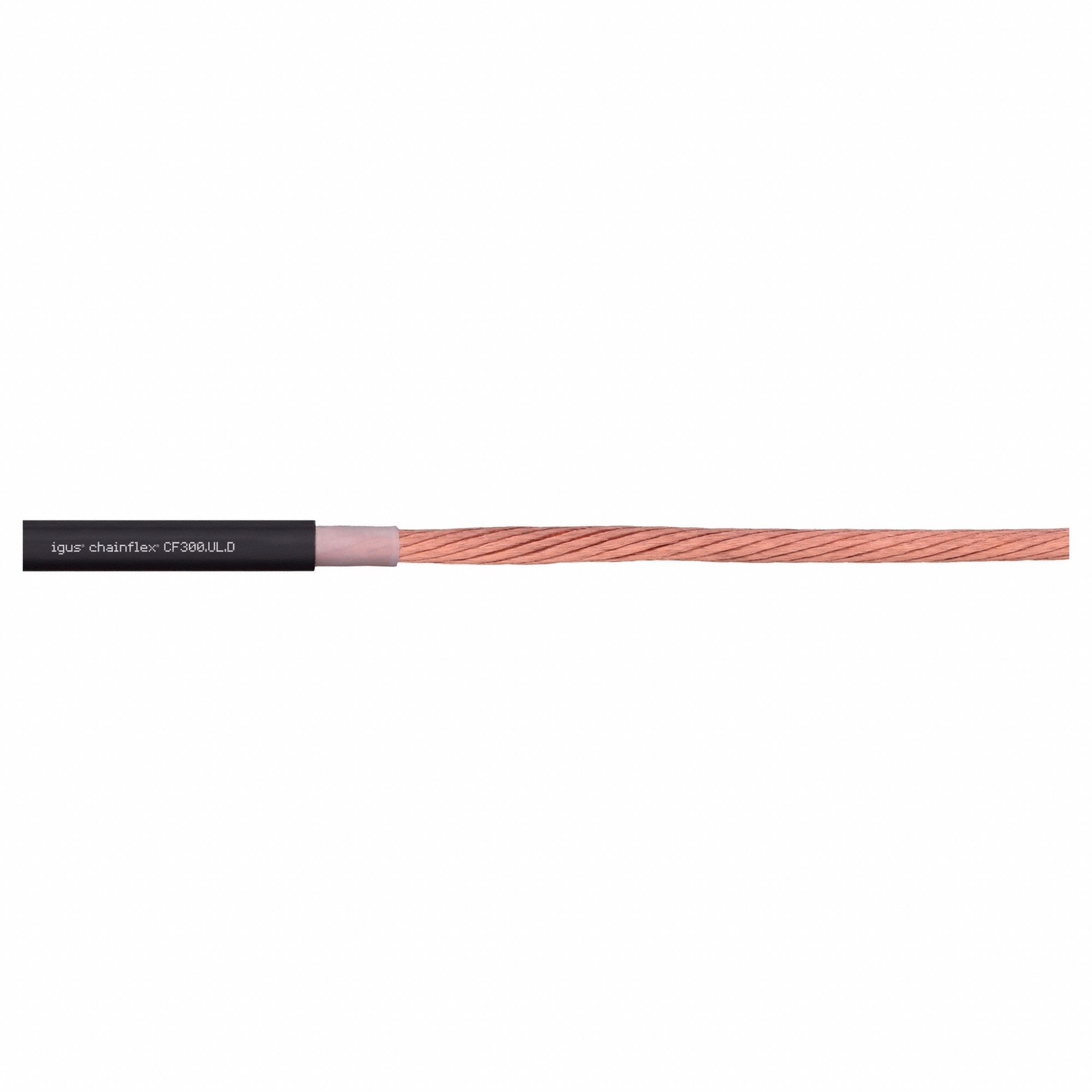

Chainflex 3G-OTH-47422 — Technical Specifications

Name: Chainflex 3G-OTH-47422 CHAINFLEX Motor Cable: 4 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF300-40-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VDW DESINA; Product Type: Motor Cable.
Brand: Chainflex

The CHAINFLEX Motor Cable: 4 AWG (SKU 801LY2) is a continuous flexing power cable from the Chainflex CF300-UL series, designed as a single-conductor motor cable with a TPR jacket rated at 1,000 V. It includes a ground conductor, meets VDW DESINA standards, and is UV/sunlight resistant. Minimum bend radius factors are 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VDW DESINA
Conductors	1
Cable Series	CF300-UL
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF300-40-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
