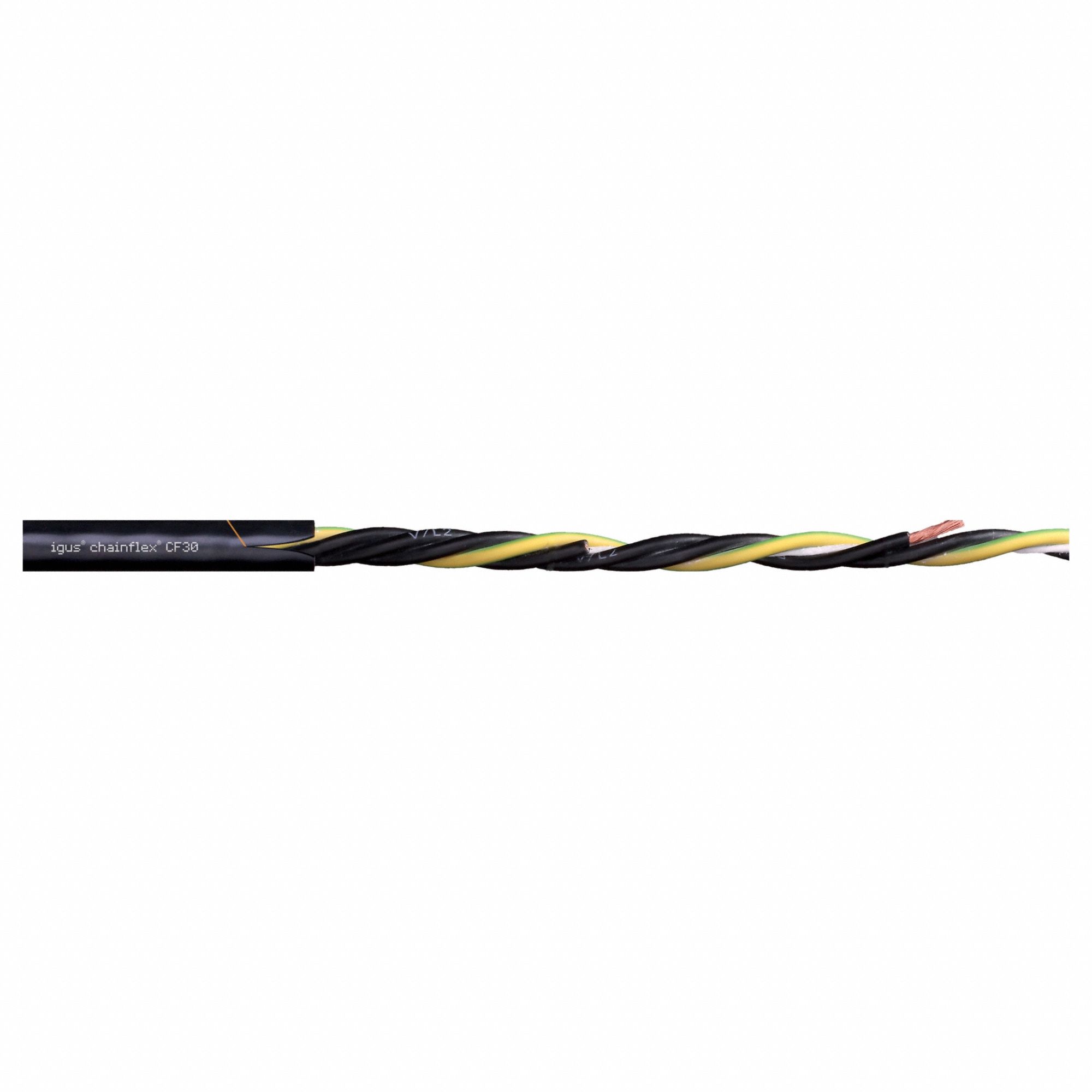

Chainflex 3G-OTH-45304 — Technical Specifications

Name: Chainflex 3G-OTH-45304 CHAINFLEX Motor Cable: 14 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-25-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: IPA 14644-1.
Brand: Chainflex

The CHAINFLEX Motor Cable: 14 AWG is a continuous flexing power cable for VFDs from the Chainflex series. This CF30 cable features 5 copper conductors with a PVC jacket, rated at 1,000 V, and includes a ground conductor. It offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, with UV/sunlight resistance and compliance with IPA 14644-1 standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	5
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-25-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
