Chainflex 3G-OTH-46057 — Technical Specifications

Name: Chainflex 3G-OTH-46057 CHAINFLEX Motor Cable: 8 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-100-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE 2014/35/EU.
Brand: Chainflex

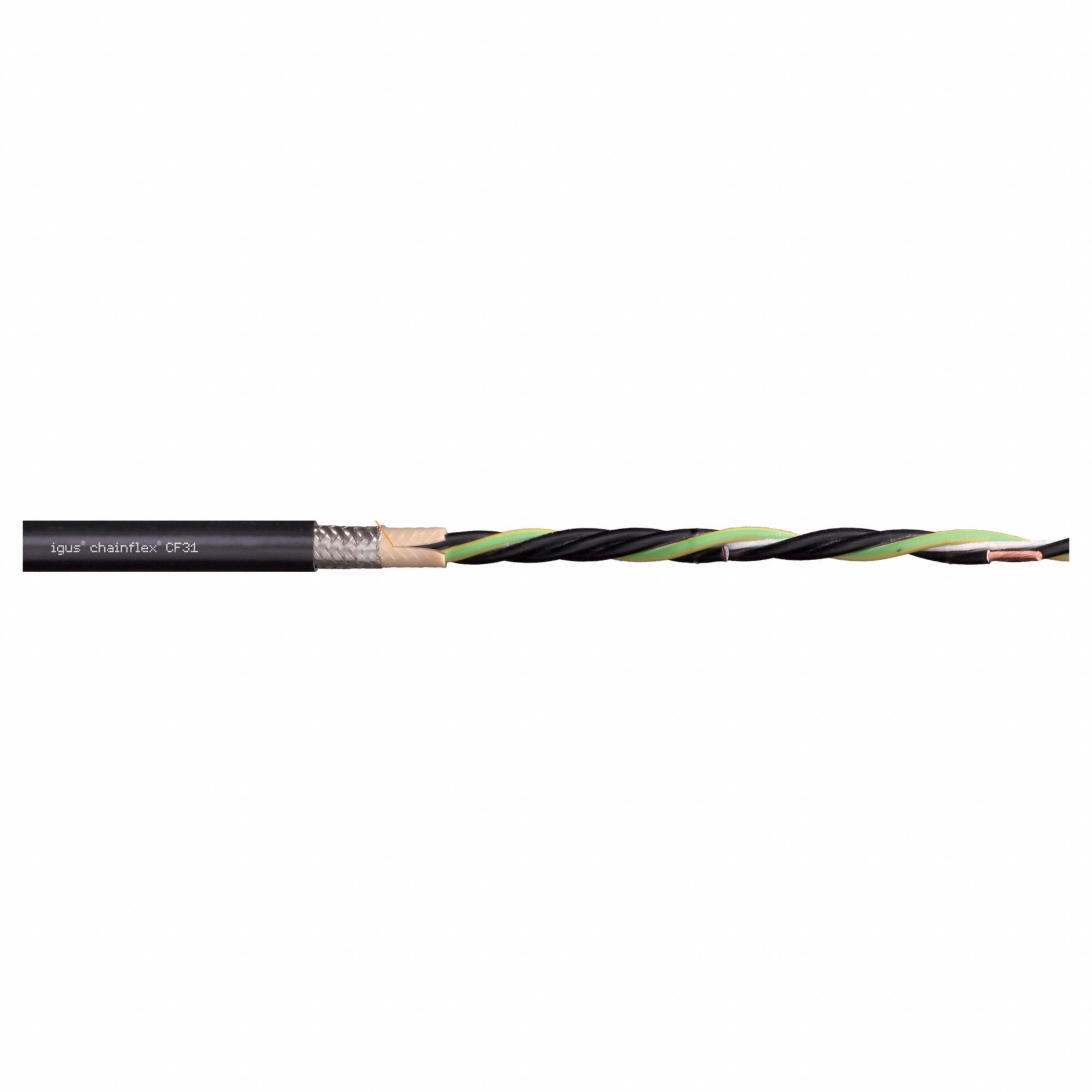

The CHAINFLEX Motor Cable: 8 AWG (SKU 801LZ6) is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 5 copper conductors with a single conductor configuration, includes a ground, and is rated at 1,000 V with a PVC jacket. The cable is oil and grease resistant, complies with CE 2014/35/EU standards, and has minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE 2014/35/EU
Conductors	5
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-100-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
