Chainflex 3G-OTH-47269 — Technical Specifications

Name: Chainflex 3G-OTH-47269 CHAINFLEX Motor Cable: 10 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF34-60-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: VDW DESINA.
Brand: Chainflex

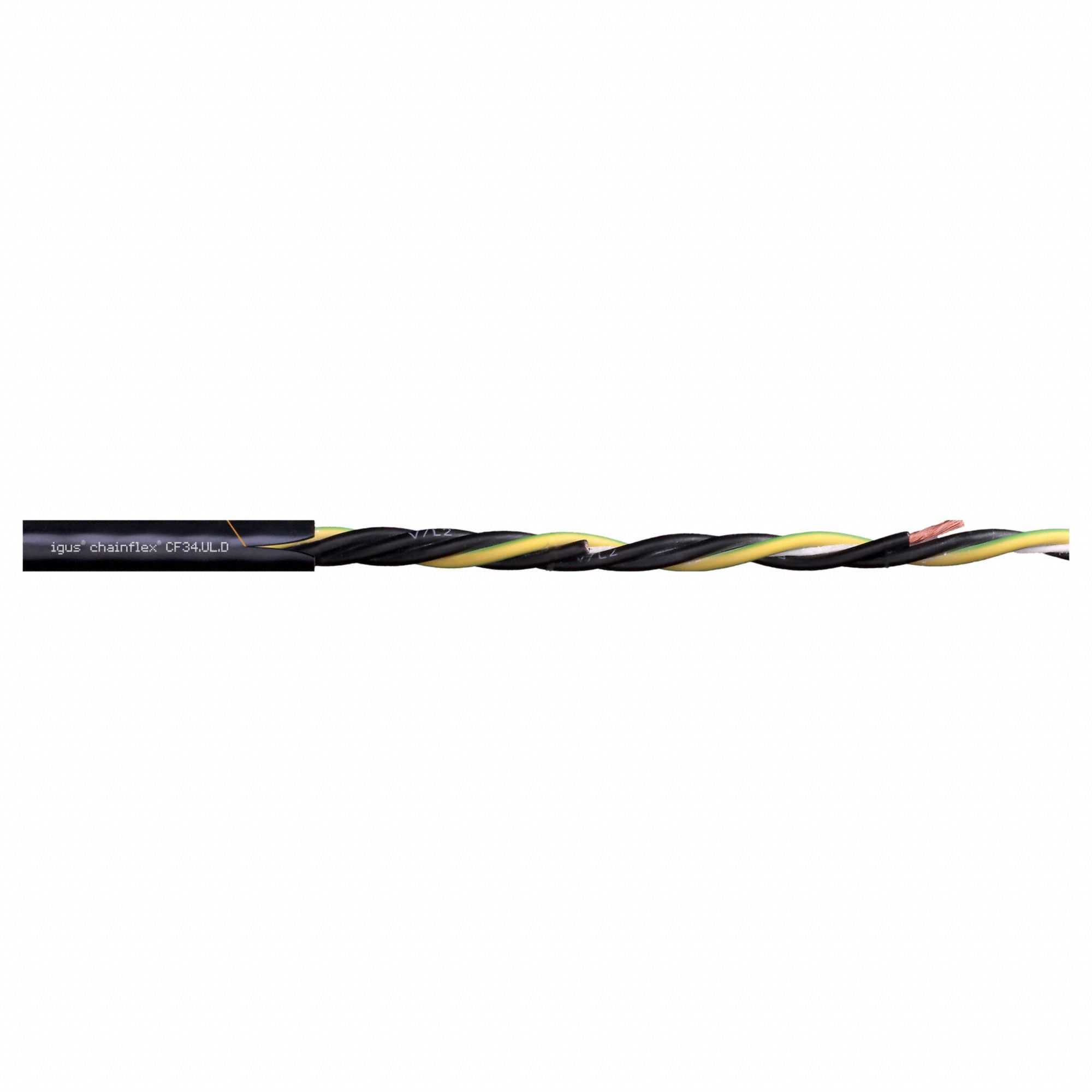

The CHAINFLEX Motor Cable: 10 AWG is a continuous flexing power cable from the Chainflex series, model CF34-UL. This 5-conductor motor cable features a copper conductor, TPR jacket, and includes a ground conductor, rated at 1,000 V. It is oil and grease resistant, meets VDW DESINA standards, and offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VDW DESINA
Conductors	5
Cable Series	CF34-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF34-60-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
