Chainflex 3G-OTH-46929 — Technical Specifications

Name: Chainflex 3G-OTH-46929 CHAINFLEX Motor Cable: 16 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF885-160-01). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: UL Listed.
Brand: Chainflex

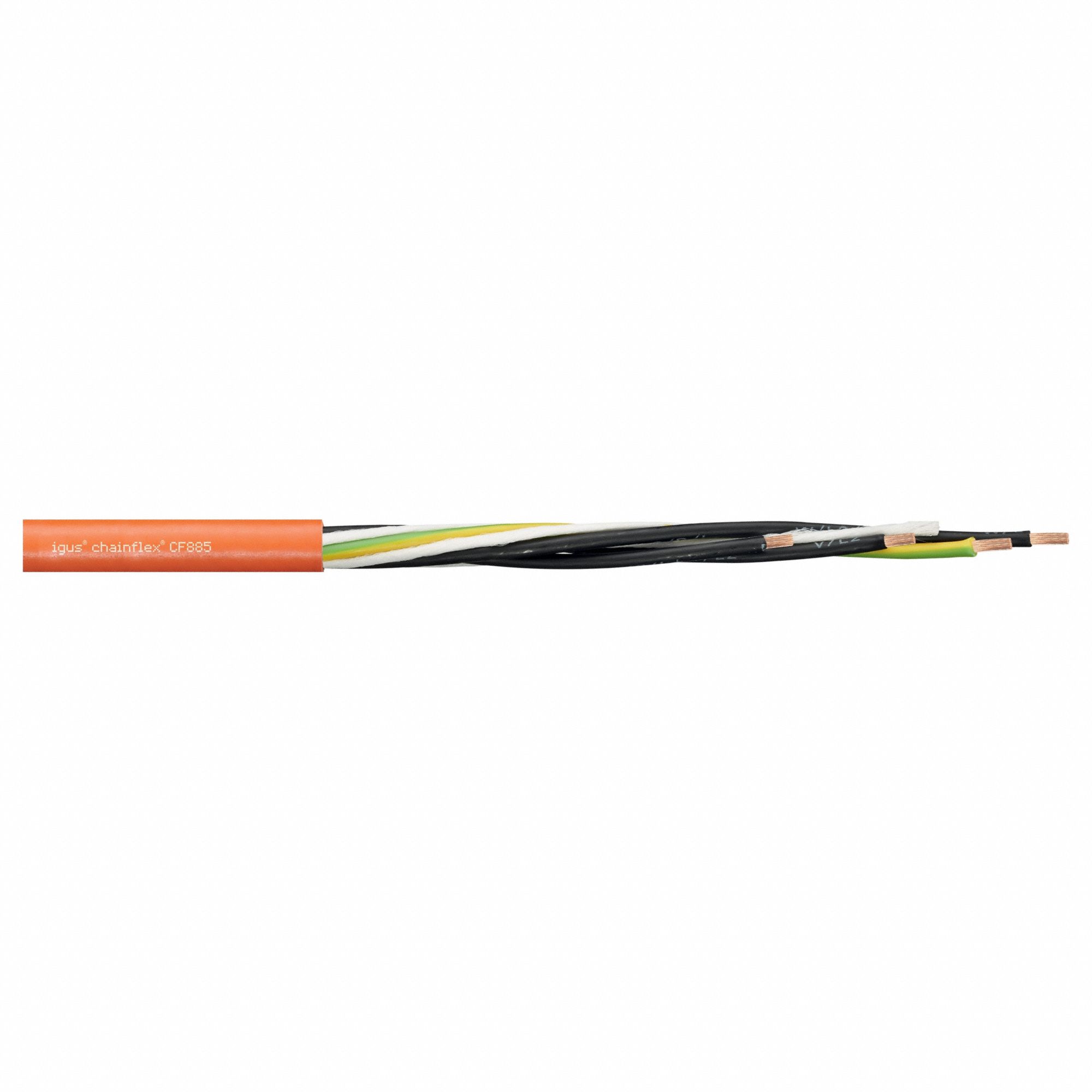

The CHAINFLEX Motor Cable: 16 AWG (SKU 801M29, MPN CF885-160-01) is a single-conductor continuous flexing power cable from the Chainflex CF885 series. It features a copper conductor, PVC jacket, 600 V rating, and is UL Listed with flame-retardant properties. The cable offers minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications, and does not include a ground conductor.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	UL Listed
Conductors	1
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF885-160-01
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
