Chainflex 3G-OTH-46404 — Technical Specifications

Name: Chainflex 3G-OTH-46404 CHAINFLEX Motor Cable: 14 AWG, 1 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF885-PE-25-01). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: FT-1.
Brand: Chainflex

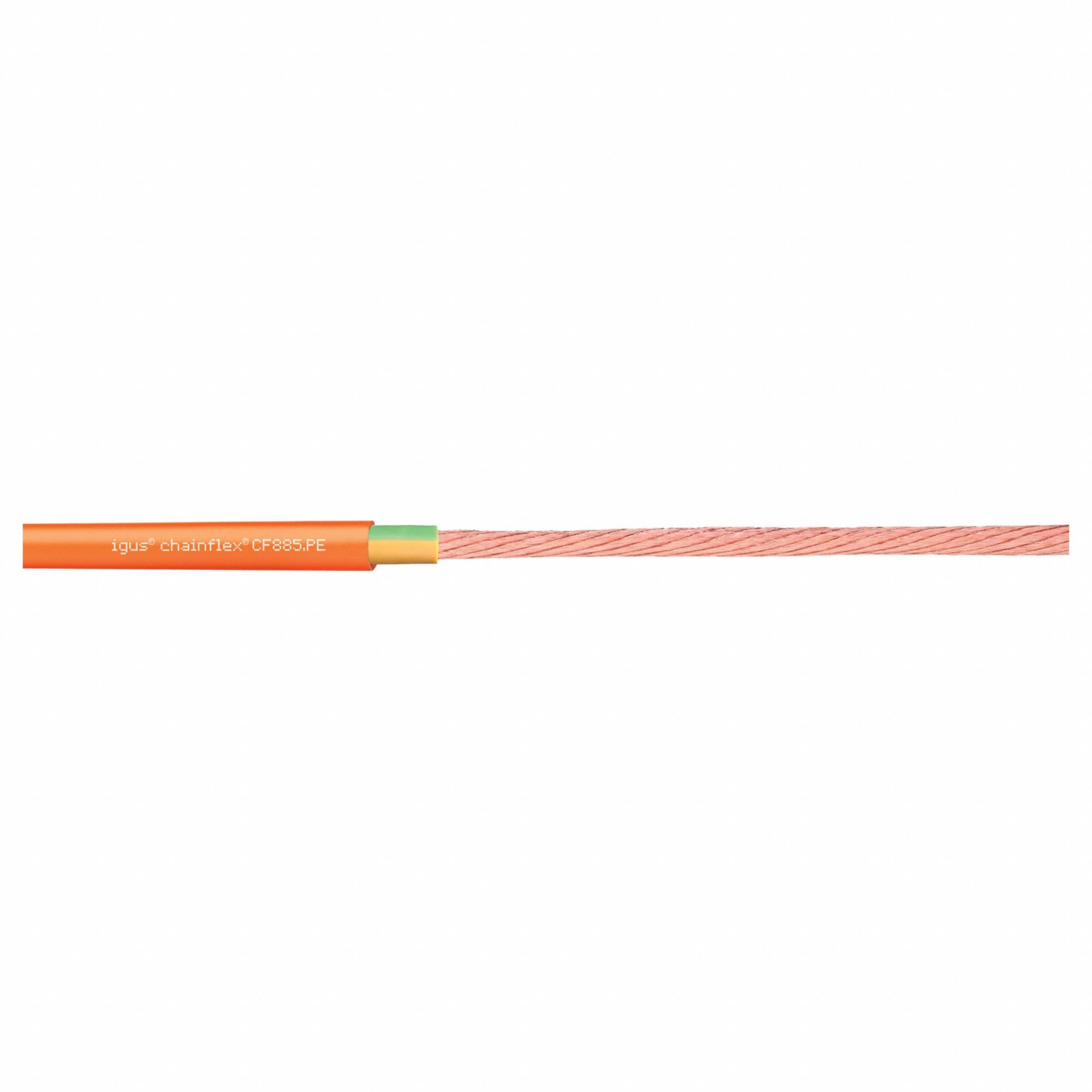

The CHAINFLEX Motor Cable: 14 AWG is a continuous flexing power cable from the Chainflex series, model CF885-PE-25-01. This single-conductor copper cable features a PVC jacket, 600 V rating, and includes a ground conductor. It is flame retardant (FT-1 standard) with minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	1
Cable Series	CF885
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF885-PE-25-01
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
