Chainflex 3G-OTH-45454 — Technical Specifications

Name: Chainflex 3G-OTH-45454 CHAINFLEX Motor Cable: 10 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF886-60-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

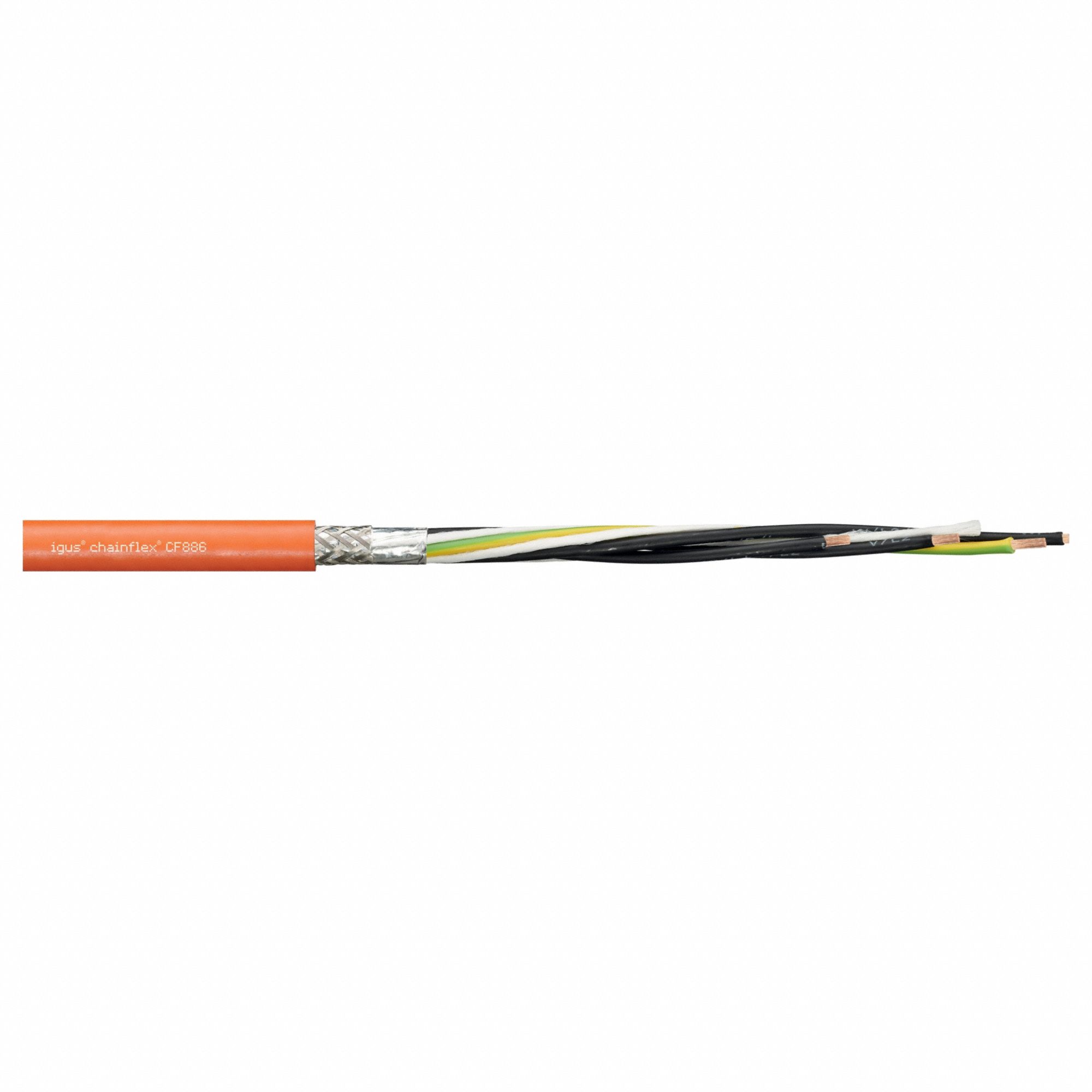

The CHAINFLEX Motor Cable: 10 AWG (SKU 801M58, MPN CF886-60-04) is a continuous flexing power cable for VFDs from the Chainflex CF886 series. This single-conductor-configuration copper cable includes a ground, features a PVC jacket, and is rated at 1,000 V. It meets VW-1 flame retardant standards and has minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	4
Cable Series	CF886
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF886-60-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
