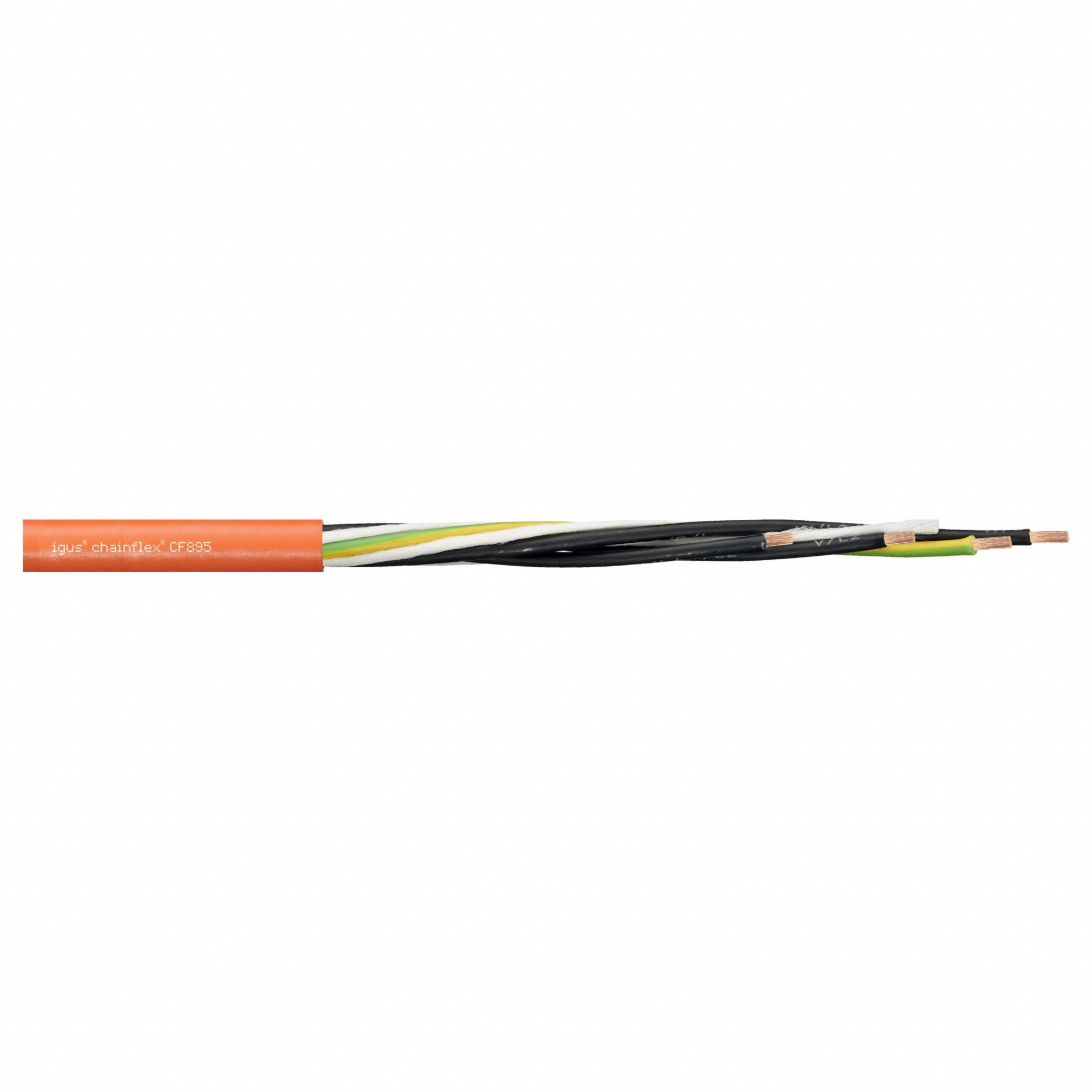

Chainflex 3G-OTH-47502 — Technical Specifications

Name: Chainflex 3G-OTH-47502 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF895-25-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

The CHAINFLEX Motor Cable: 14 AWG (SKU 801M82, MPN CF895-25-04) is a continuous flexing power cable from the Chainflex CF895 series, featuring 4 copper conductors with a single conductor configuration and an included ground. It has a PUR jacket, is rated at 1,000 V, and complies with IEC 60332-1-2. The cable offers oil and grease resistance, with minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	4
Cable Series	CF895
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF895-25-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
