Chainflex 3G-OTH-47591 — Technical Specifications

Name: Chainflex 3G-OTH-47591 CHAINFLEX Motor Cable: 6 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF896-160-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

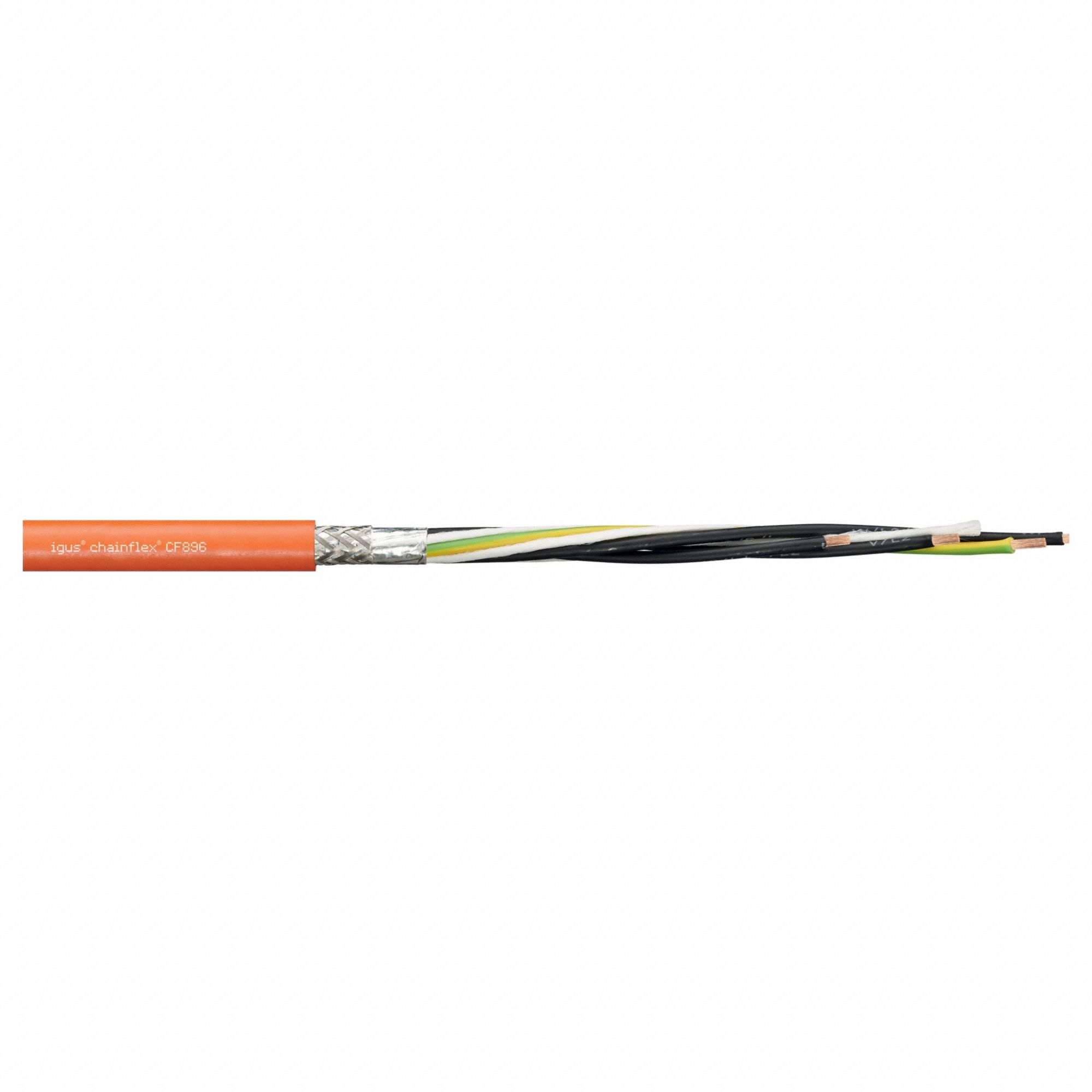

The CHAINFLEX Motor Cable: 6 AWG is a continuous flexing power cable from the Chainflex series, featuring 4 copper conductors with a PUR jacket rated at 1,000 V. It includes a ground conductor and is UV/sunlight resistant, with minimum bend radius factors of 8 x OD for fixed, 12 x OD for flexible, and 15 x OD for e-chain applications. This RoHS Compliant-II (2011/65/EU) cable is designed for demanding motion-control environments.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Conductors	4
Cable Series	CF896
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF896-160-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
