Chainflex 3G-OTH-47371 — Technical Specifications

Name: Chainflex 3G-OTH-47371 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF896-40-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CSA.
Brand: Chainflex

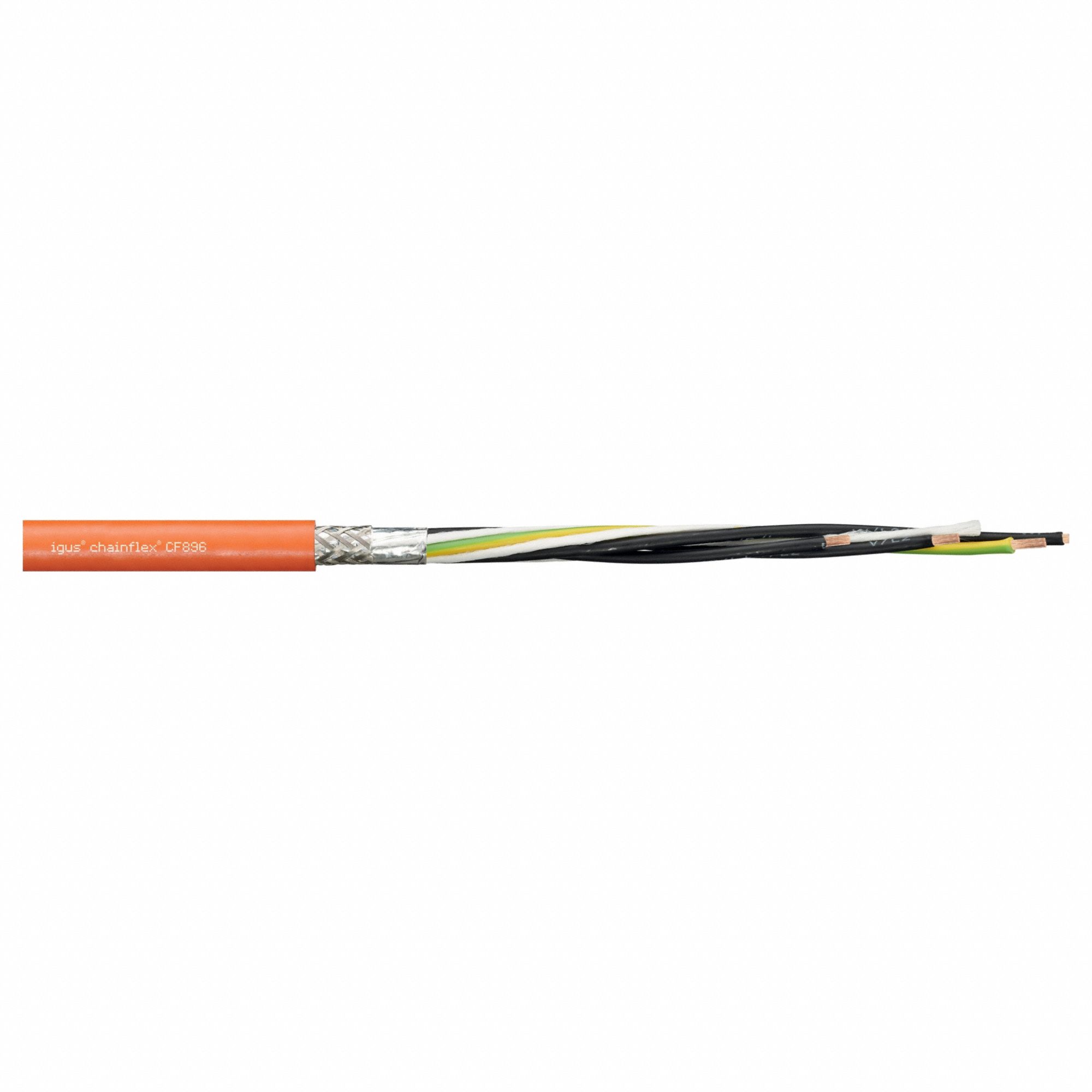

The CHAINFLEX Motor Cable: 12 AWG (SKU 801M90, MPN CF896-40-04) is a continuous flexing power cable from the Chainflex CF896 series, featuring 4 copper conductors with a ground and a PUR jacket rated at 1,000 V. It meets CSA standards and is UV/sunlight resistant, with minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CSA
Conductors	4
Cable Series	CF896
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF896-40-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
