Chainflex 3G-OTH-47395 — Technical Specifications

Name: Chainflex 3G-OTH-47395 CHAINFLEX Motor Cable: 10 AWG, 4 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF896-60-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 8 x OD; Minimum Bend Radius Factor - Flexible: 12 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 15 x OD; Resistance Properties: Oil and Grease Resistant; Standards: UL Listed.
Brand: Chainflex

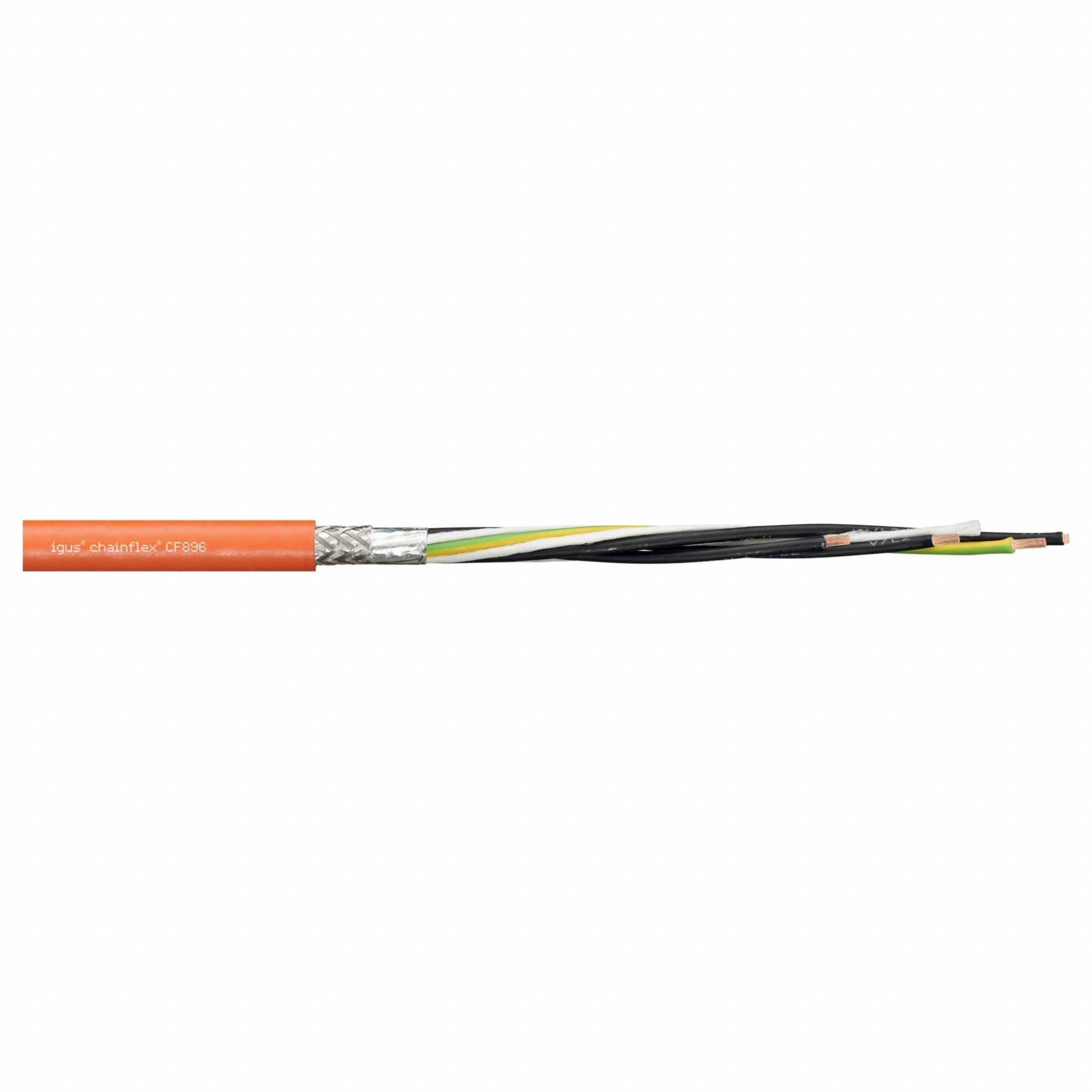

The CHAINFLEX Motor Cable: 10 AWG is a continuous flexing power cable from the Chainflex series, model CF896-60-04. This UL Listed, oil- and grease-resistant cable features 4 copper conductors with a single conductor configuration, includes a ground, and has a PUR jacket rated for 1,000 V. It offers minimum bend radius factors of 8 x OD for fixed installation, 12 x OD for flexible use, and 15 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	UL Listed
Conductors	4
Cable Series	CF896
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF896-60-04
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - E-Chain	15 x OD
Minimum Bend Radius Factor - Flexible	12 x OD
