Chainflex 3G-OTH-47929 — Technical Specifications

Name: Chainflex 3G-OTH-47929 CHAINFLEX Motor Cable: 6 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CFPE-160-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: VDMA 24568 with Plantocut 8 S-MB by DEA; Product Type: Motor Cable.
Brand: Chainflex

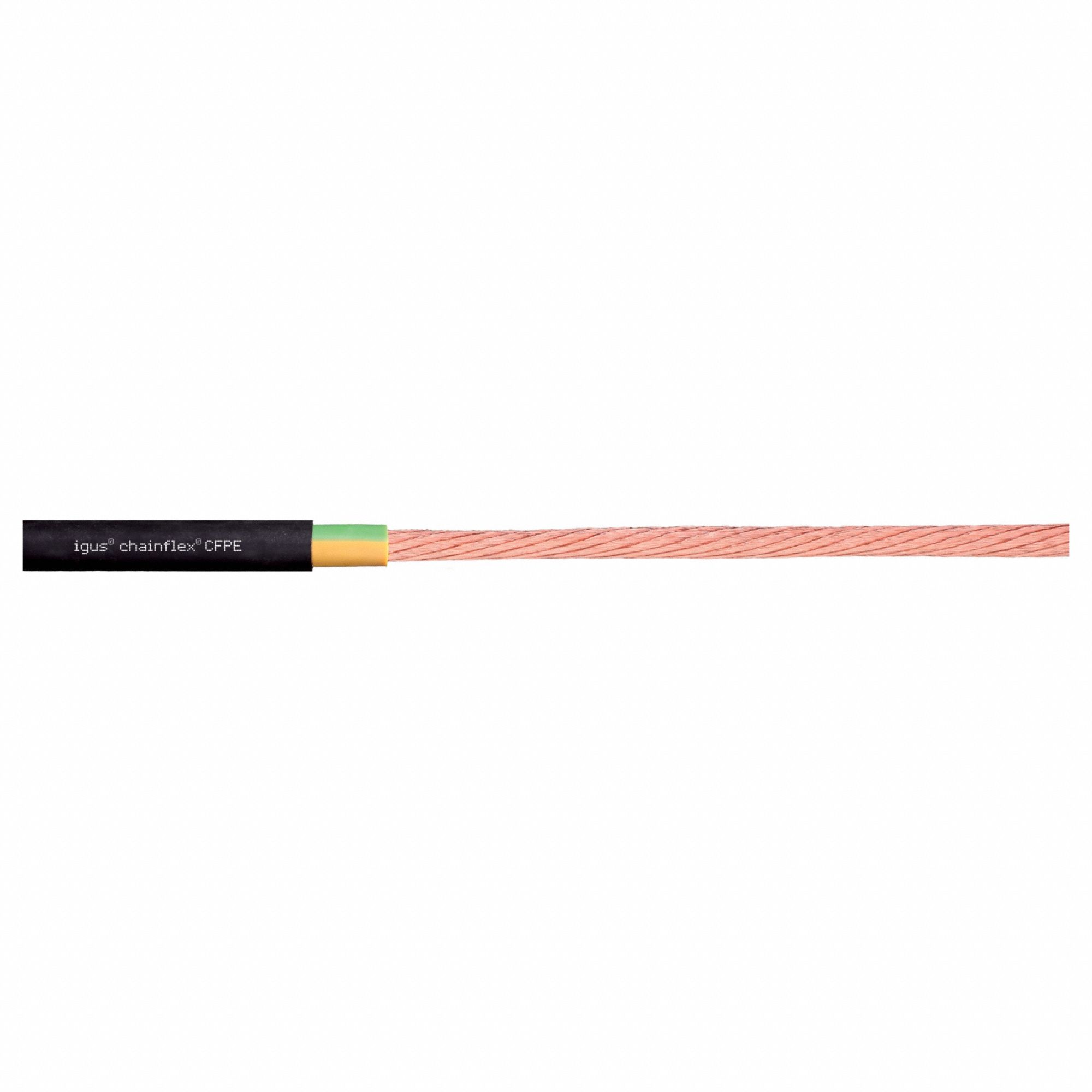

The CHAINFLEX Motor Cable: 6 AWG (SKU 801MG4, MPN CFPE-160-01) is a single-conductor continuous flexing power cable from the Chainflex CFPE series. It features a TPR jacket, includes a ground conductor, and is rated at 1,000 V. The cable is UV/sunlight resistant and complies with VDMA 24568 with Plantocut 8 S-MB by DEA, with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VDMA 24568 with Plantocut 8 S-MB by DEA
Conductors	1
Cable Series	CFPE
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CFPE-160-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
