Chainflex 3G-OTH-47622 — Technical Specifications

Name: Chainflex 3G-OTH-47622 CHAINFLEX Motor Cable: 2/0 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CFPE-700-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: PV 3.10.7 Status 1992; Product Type: Motor Cable.
Brand: Chainflex

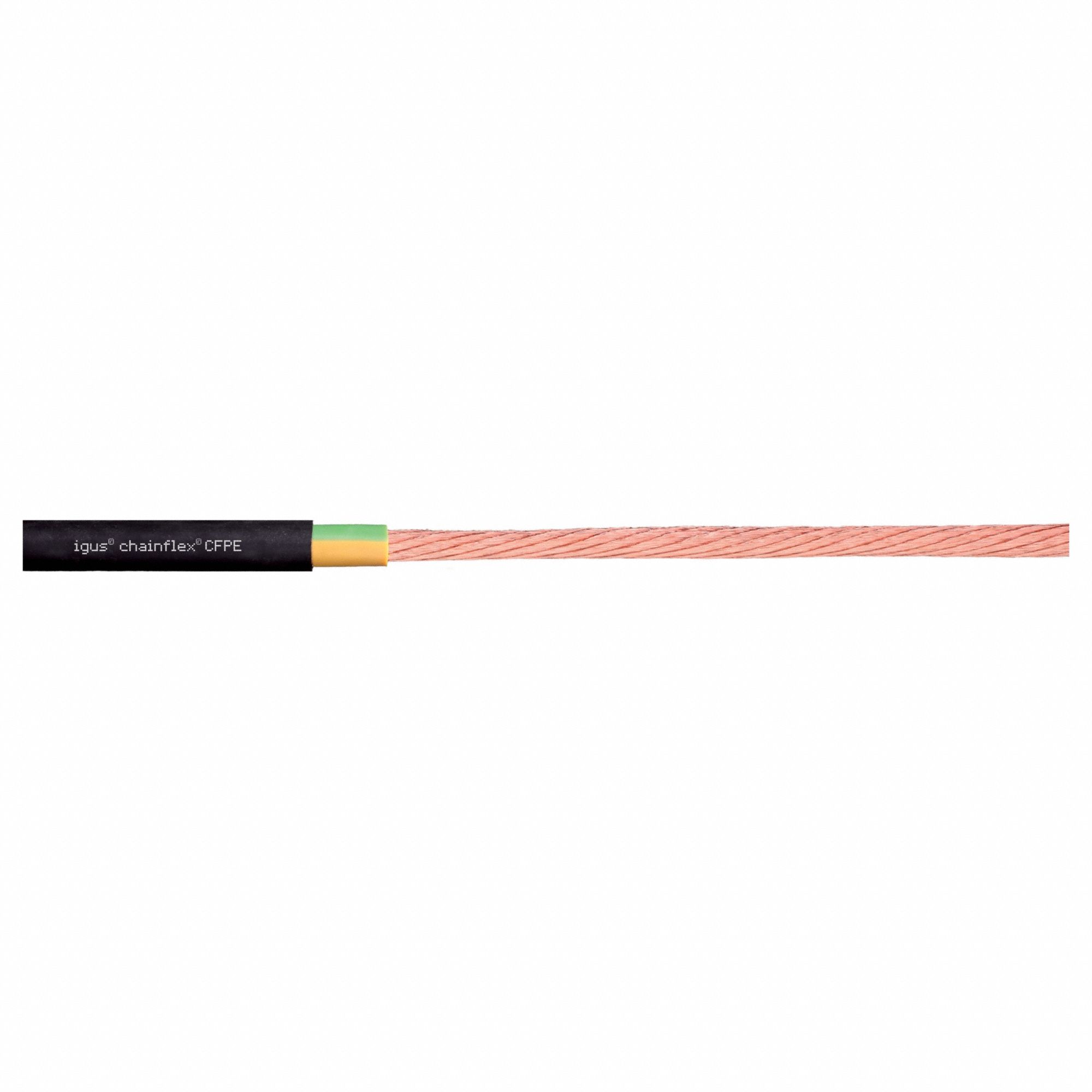

The CHAINFLEX Motor Cable: 2/0 AWG (SKU 801MH1, MPN CFPE-700-01) is a continuous flexing power cable from the Chainflex CFPE series. It features a single conductor configuration with a TPR jacket, includes a ground, and is rated for 1,000 V. The cable is oil and grease resistant, complies with PV 3.10.7 Status 1992, and has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	1
Cable Series	CFPE
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CFPE-700-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
