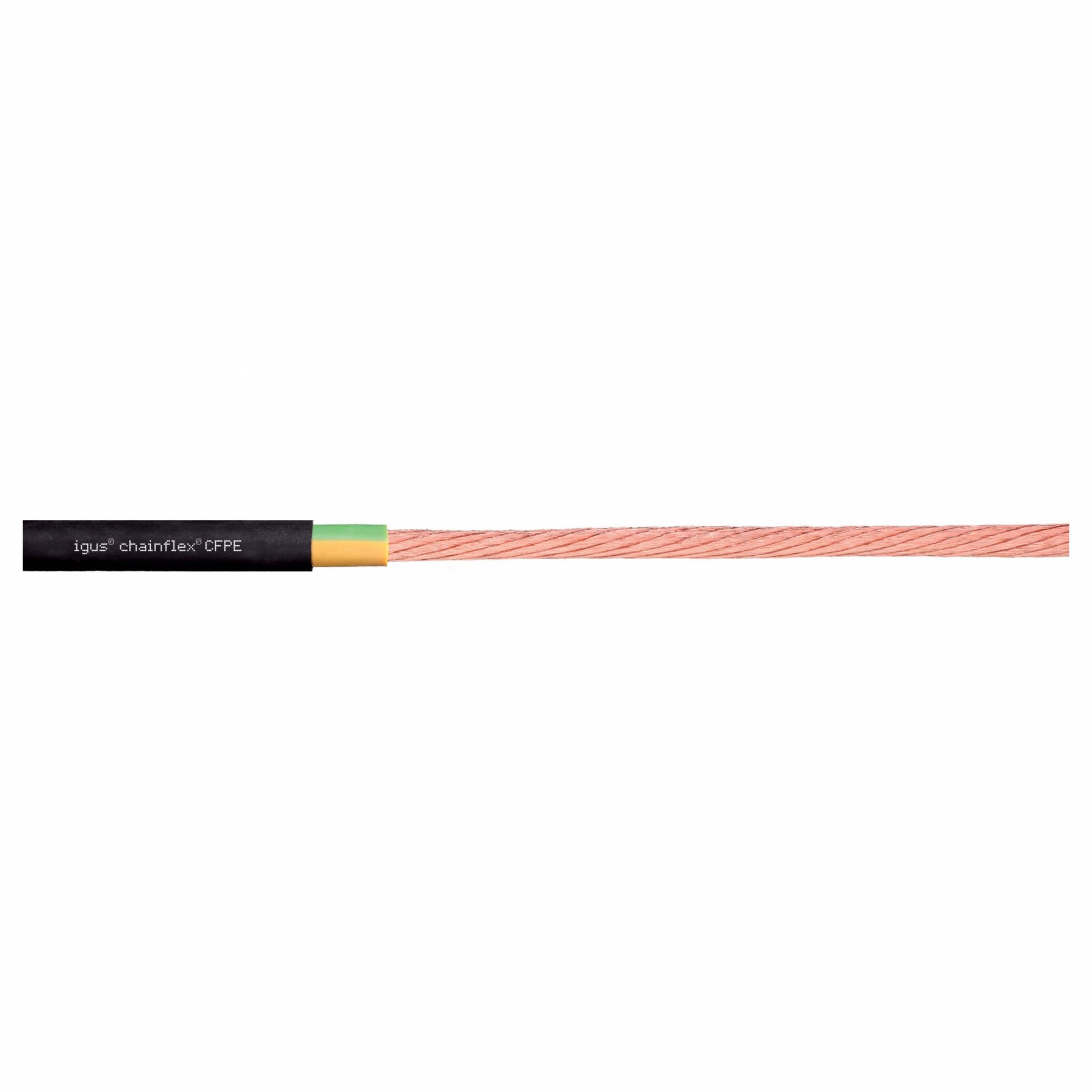

Chainflex 3G-OTH-47636 — Technical Specifications

Name: Chainflex 3G-OTH-47636 CHAINFLEX Motor Cable: 3/0 AWG, 1 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CFPE-950-01). Key specifications — Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Antimicrobial; Standards: CF9.15.07 ISO Class 1 (Outer Jacket Material); Product Type: Motor Cable.
Brand: Chainflex

The CHAINFLEX CFPE-950-01 is a continuous flexing power cable, specifically a single-conductor 3/0 AWG motor cable with a TPR jacket and a 1,000 V rating. It includes a ground conductor and features antimicrobial resistance properties. The cable meets CF9.15.07 ISO Class 1 standards for its outer jacket material and has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF9.15.07 ISO Class 1 (Outer Jacket Material)
Conductors	1
Cable Series	CFPE
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CFPE-950-01
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
