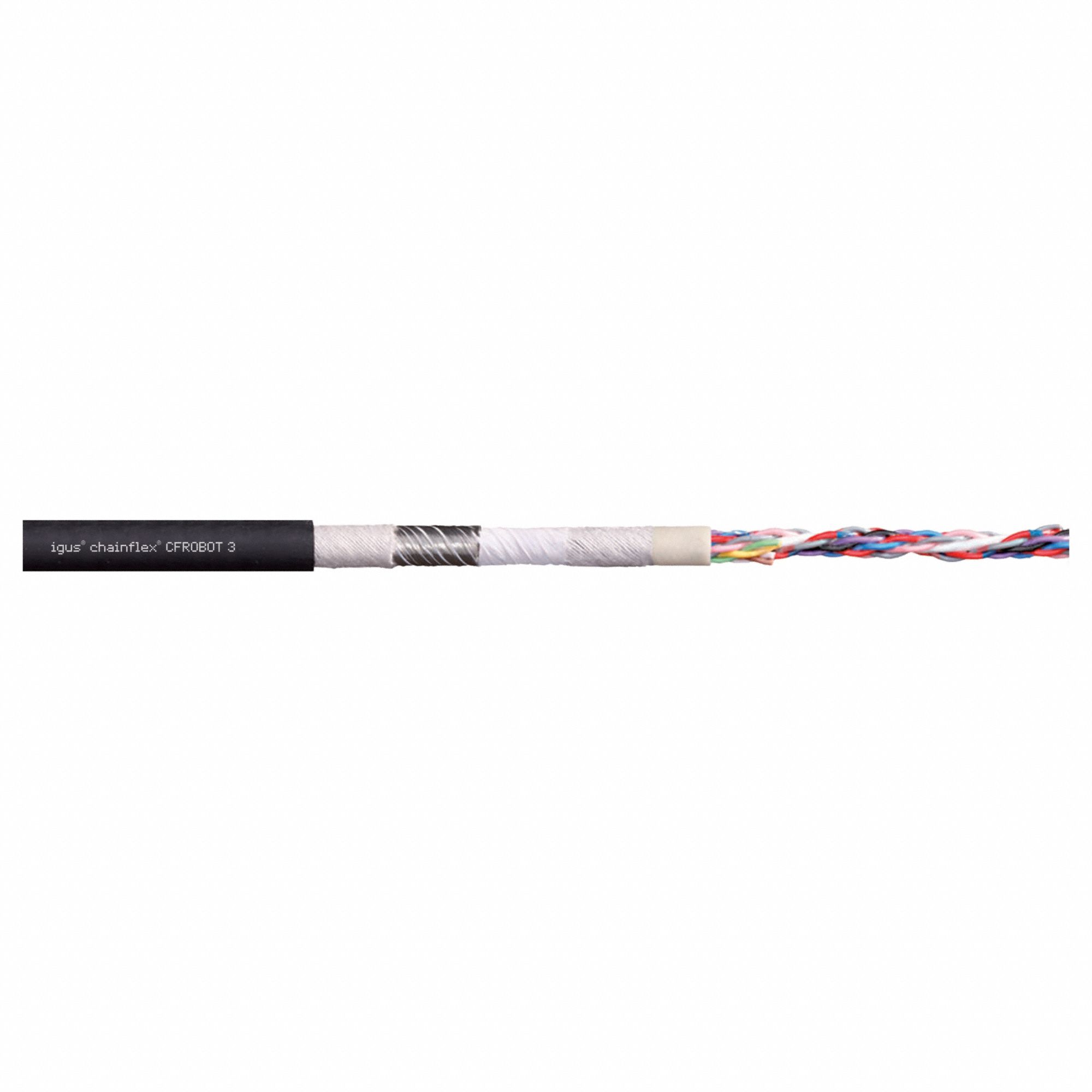

Chainflex 3G-OTH-46708 — Technical Specifications

Name: Chainflex 3G-OTH-46708 CHAINFLEX Data Cable: 24 AWG Conductor Size, 6 Conductors, Twisted Pr, PUR Jacket, Order by the Foot (MPN CFROBOT3-02062). Key specifications — Conductor Grouping: Twisted Pair; Conductor Size: 24 AWG; Includes Ground: No; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 5 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Data Cable (SKU 801MJ1, MPN CFROBOT3-02062) is a 24 AWG twisted-pair data cable with a PUR jacket, ordered by the foot. It features 6 conductors, no ground, and minimum bend radius factors of 5 x OD for fixed and 8 x OD for flexible installations.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Twisted Pr, PUR Jacket, Order by the Foot
Brand	CHAINFLEX
Conductors	6
Conductor Size	24 AWG
Overall Length	Order by the Foot
Includes Ground	No
Conductor Grouping	Twisted Pair
Manufacturer Part Number	CFROBOT3-02062
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
