Chainflex 3G-OTH-46556 — Technical Specifications

Name: Chainflex 3G-OTH-46556 CHAINFLEX Motor Cable: 16 AWG Conductor Size, 4 Conductors, Single, PUR Jacket, Order by the Foot (MPN CFROBOT7-1504C). Key specifications — Conductor Grouping: Single; Conductor Size: 16 AWG; Includes Ground: Yes; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 8 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

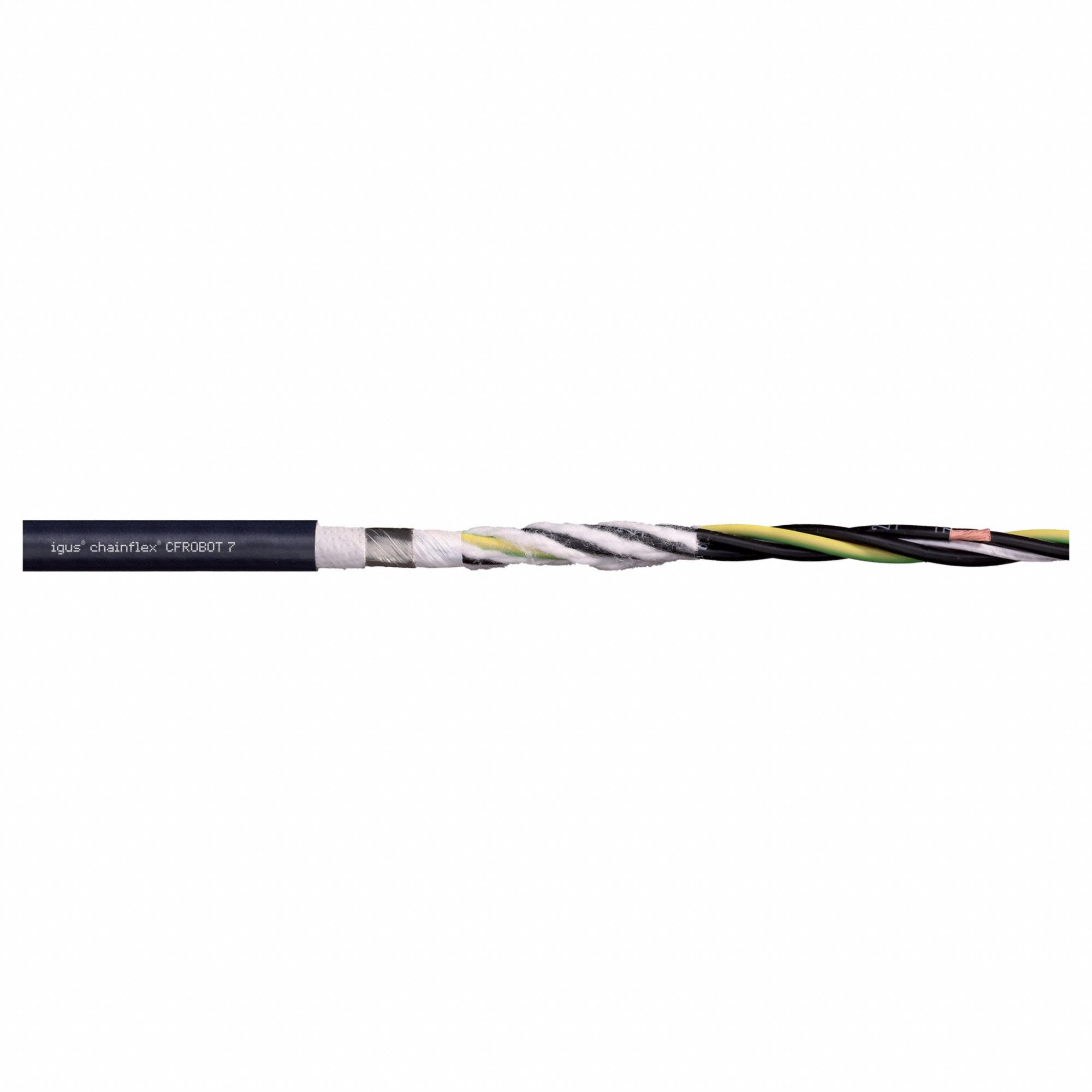

The CHAINFLEX Motor Cable (SKU 801MK4, MPN CFROBOT7-1504C) is a motor power cable with 16 AWG conductor size and 4 conductors in a single grouping, including a ground conductor. It features a PUR jacket and is sold by the foot. The cable has a minimum bend radius factor of 8 x OD for both fixed and flexible applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Single, PUR Jacket, Order by the Foot
Brand	CHAINFLEX
Conductors	4
Conductor Size	16 AWG
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	Single
Manufacturer Part Number	CFROBOT7-1504C
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
