Chainflex 3G-OTH-46656 — Technical Specifications

Name: Chainflex 3G-OTH-46656 CHAINFLEX Motor Cable: 18 AWG Conductor Size, 4 Conductors, Shielded Twisted Pr, PUR Jacket (MPN CFROBOT7-7322C). Key specifications — Conductor Grouping: Shielded Twisted Pair; Conductor Size: 18 AWG; Includes Ground: Yes; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 8 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

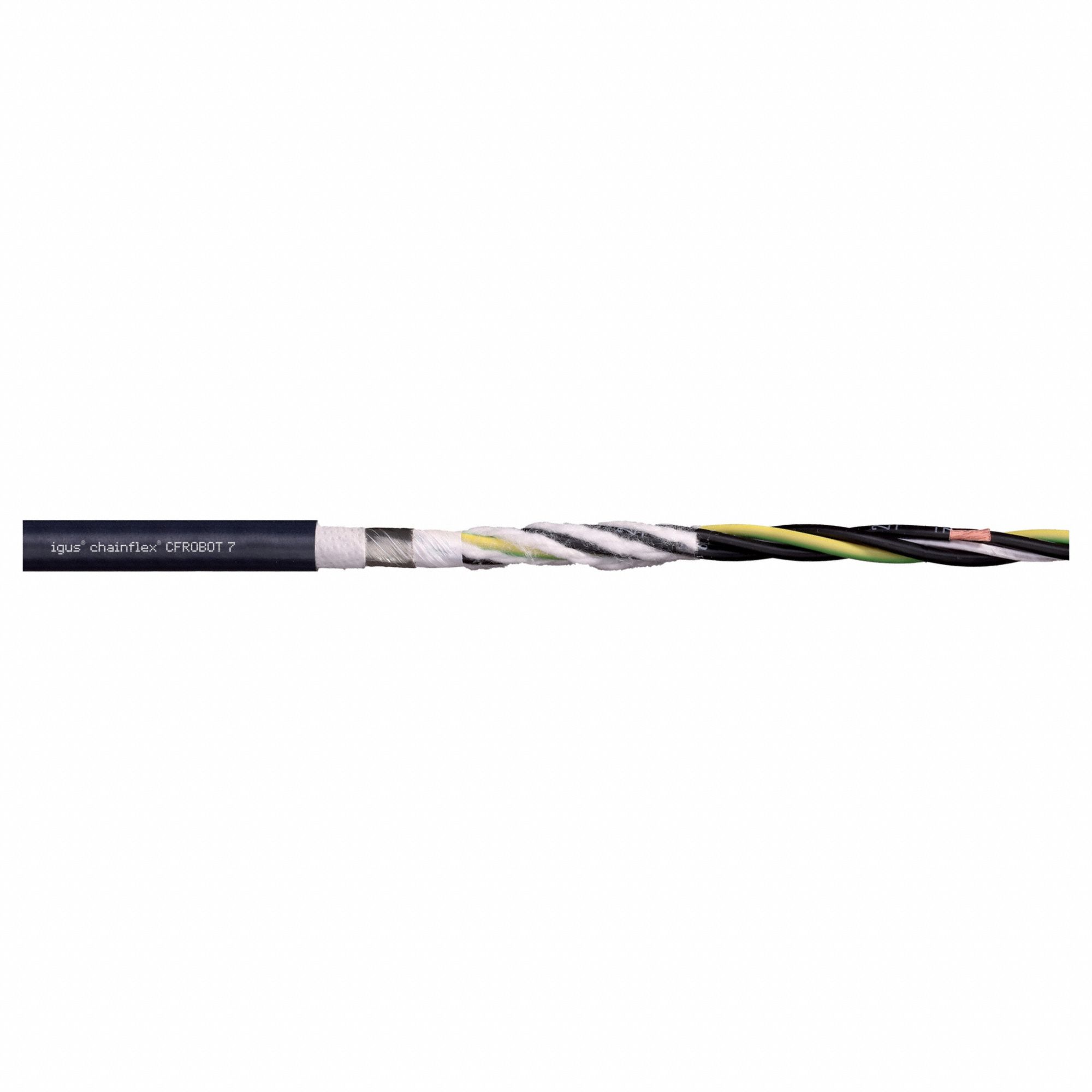

The CHAINFLEX Motor Cable (SKU 801ML1, MPN CFROBOT7-7322C) is a motor power cable with 18 AWG conductors, 4 conductors, and a shielded twisted pair grouping. It includes a ground conductor and features a PUR jacket. The cable has a minimum bend radius factor of 8 x OD for both fixed and flexible applications, and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Shielded Twisted Pr, PUR Jacket
Brand	CHAINFLEX
Conductors	4
Conductor Size	18 AWG
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	Shielded Twisted Pair
Manufacturer Part Number	CFROBOT7-7322C
Minimum Bend Radius Factor - Fixed	8 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
