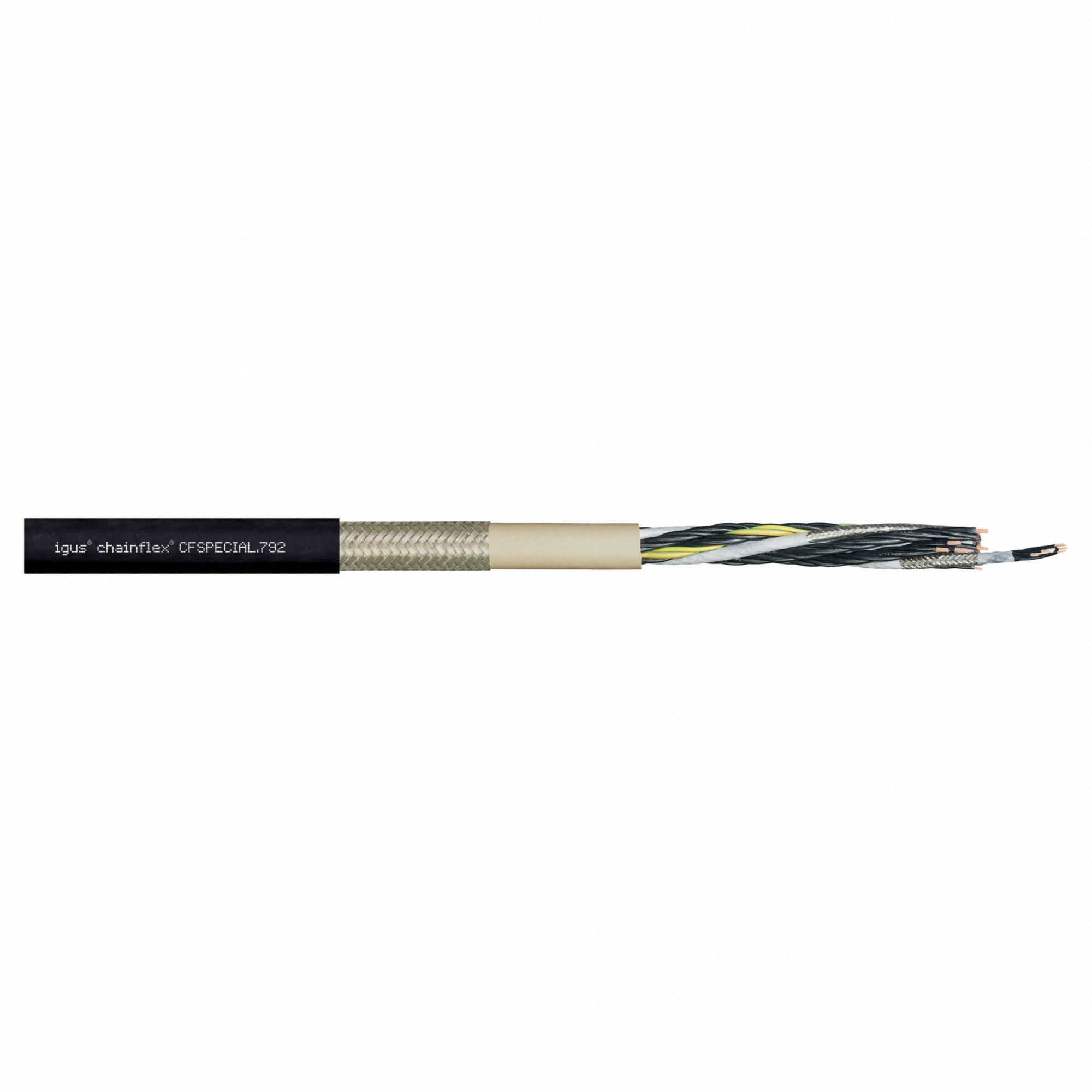

Chainflex 3G-OTH-45815 — Technical Specifications

Name: Chainflex 3G-OTH-45815 CHAINFLEX Hybrid Cable: (6) 16 AWG (1.5)/(3) Three Pr 12 AWG (4.0)/10 AWG (6.0), PUR Jacket (MPN CFSP-792-013). Key specifications — Conductor Grouping: (6) 16 AWG/(3) Three Pair 12 AWG/10 AWG; Includes Ground: Yes; Minimum Bend Radius Factor - Flexible: 8 x OD; Minimum Bend Radius Factor - Fixed: 5 x OD; Overall Length: Order by the Foot; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Hybrid Cable (SKU 801MM8, MPN CFSP-792-013) is a hybrid cable featuring a conductor grouping of (6) 16 AWG/(3) Three Pair 12 AWG/10 AWG with a PUR jacket. It includes a ground conductor and is available by the foot. The cable has a minimum bend radius factor of 5 x OD for fixed installation and 8 x OD for flexible installation.

View Product & Quote

Technical Specifications

Parameter	Value
Type	(4.0)/10 AWG (6.0), PUR Jacket
Brand	CHAINFLEX
Overall Length	Order by the Foot
Includes Ground	Yes
Conductor Grouping	(6) 16 AWG/(3) Three Pair 12 AWG/10 AWG
Manufacturer Part Number	CFSP-792-013
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
