Coxreels 3G-OTH-456339 — Technical Specifications

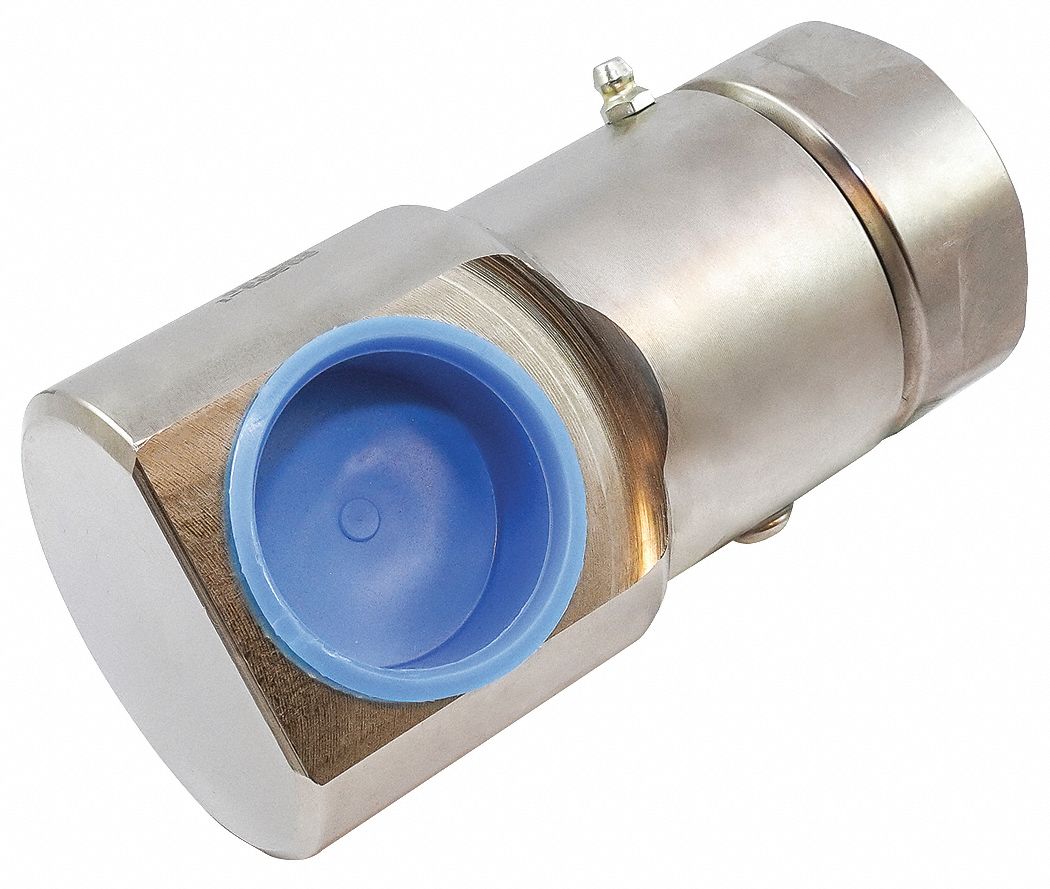

The COXREELS Swivel (SKU 291AV8, MPN 20253-1) is a carbon steel hose reel swivel with 1-1/2 in FNPT inlet and outlet configurations, designed for the 1185/SP Reel Series. It features TFE/P seal material and a maximum operating pressure of 4,000 psi.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 1/2 in |
| Type | For 1185/SP Reel Series |
| Brand | COXREELS |
| Seal Material | TFE/P |
| For Reel Series | SP |
| Max Op Pressure | 4,000 psi |
| Manufacturer Part Number | 20253-1 |
| Inlet Swivel Configuration | 1-1/2 in FNPT |
| Outlet Swivel Configuration | 1-1/2 in FNPT |
