Coxreels 3G-OTH-456341 — Technical Specifications

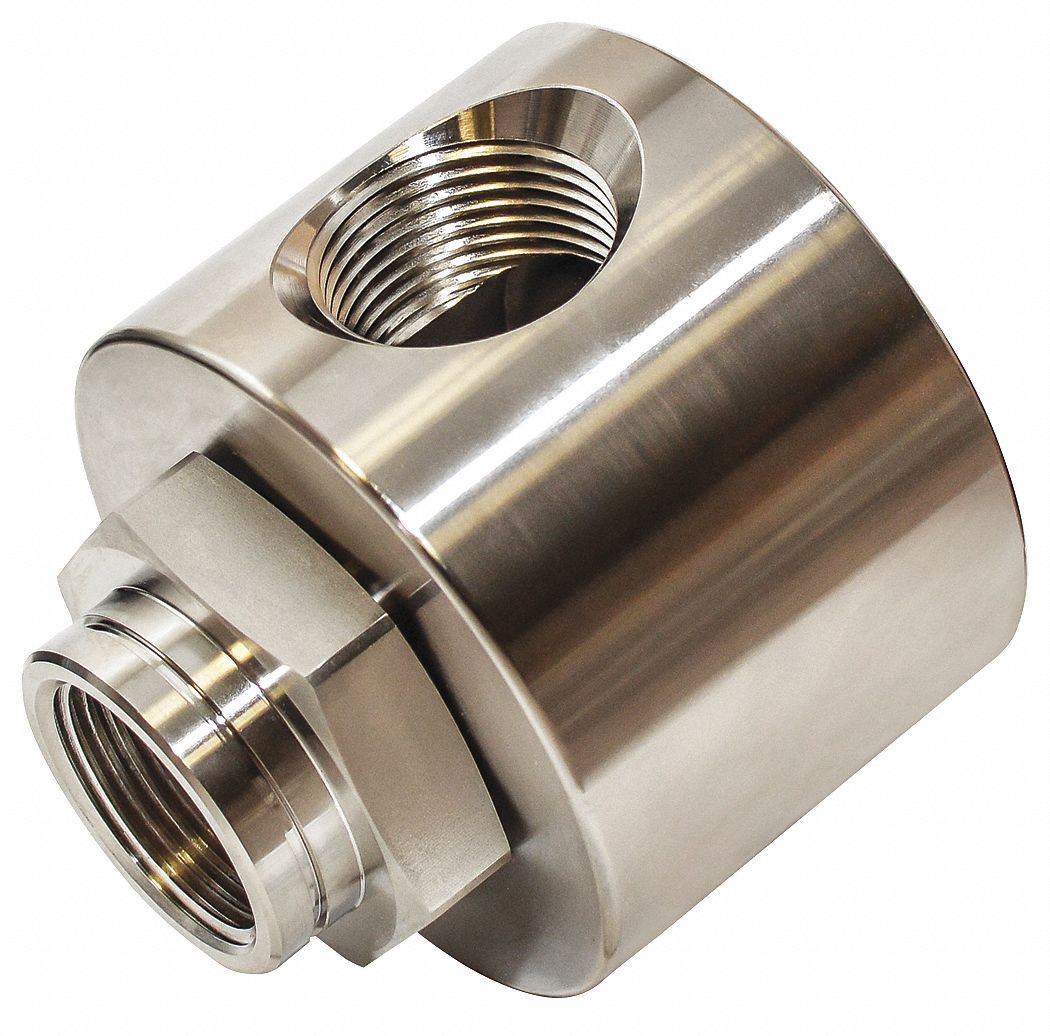

The COXREELS Swivel (MPN 7231-1) is a carbon steel hose reel swivel with 1 in FNPT inlet and outlet configurations, designed for the 1600/T/XTM Reel Series. It features a nitrile seal material and supports a maximum operating pressure of 4,000 psi.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Type | For 1600/T/XTM Reel Series |
| Brand | COXREELS |
| Seal Material | Nitrile |
| For Reel Series | 1600 |
| Max Op Pressure | 4,000 psi |
| Manufacturer Part Number | 7231-1 |
| Inlet Swivel Configuration | 1 in FNPT |
| Outlet Swivel Configuration | 1 in FNPT |
