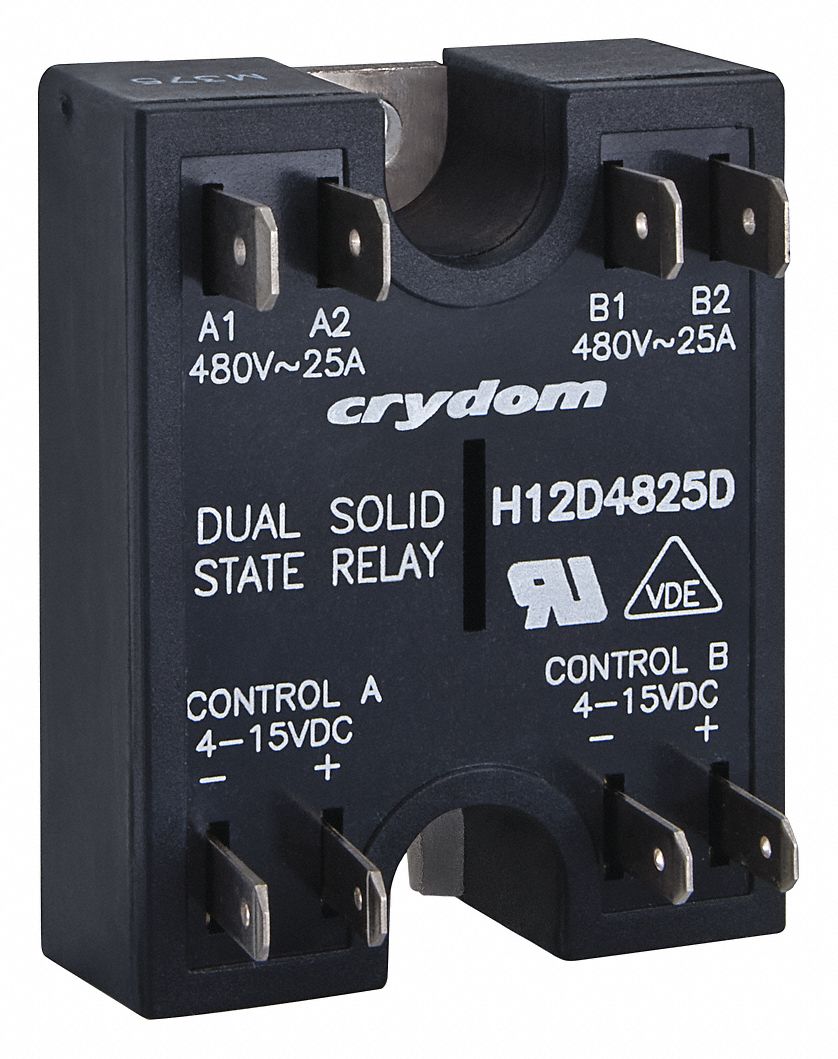

Crydom 3G-OTH-38255 — Technical Specifications

Name: Crydom 3G-OTH-38255 CRYDOM Dual Solid State Relay: Surface Mounted, 25 A Max Output Current, SCR, AC Output (MPN H12D4825D). Key specifications — Brand: CRYDOM; Current Type: DC; Electrical Connection: Screw Clamp; Finger Safe: No; Input Current: 12 mA; Maximum Output Current without Heat Sink: Not Recommended; Mounting Style: Panel; Output Voltage: 48 to 530V AC.
Brand: Crydom

The CRYDOM Dual Solid State Relay is a panel-mounted, surface-mounted relay with a DC input current of 12 mA and an AC output voltage range of 48 to 530V AC. It features a Form A switch configuration, SCR output, and screw clamp electrical connection, with a maximum output current of 25 A (not recommended for use without a heat sink). This relay is not finger-safe and is designed for AC output applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SCR, AC Output
Brand	CRYDOM
Finger Safe	No
Current Type	DC
Input Current	12 mA
Mounting Style	Panel
Output Voltage	48 to 530V AC
Max Output Current	25 A
Switch Configuration	Form A
Voltage/Current Type	AC Output
Electrical Connection	Screw Clamp
Manufacturer Part Number	H12D4825D
Maximum Output Current Without Heat Sink	Not Recommended
