Dayton 3G-OTH-79017 — Technical Specifications

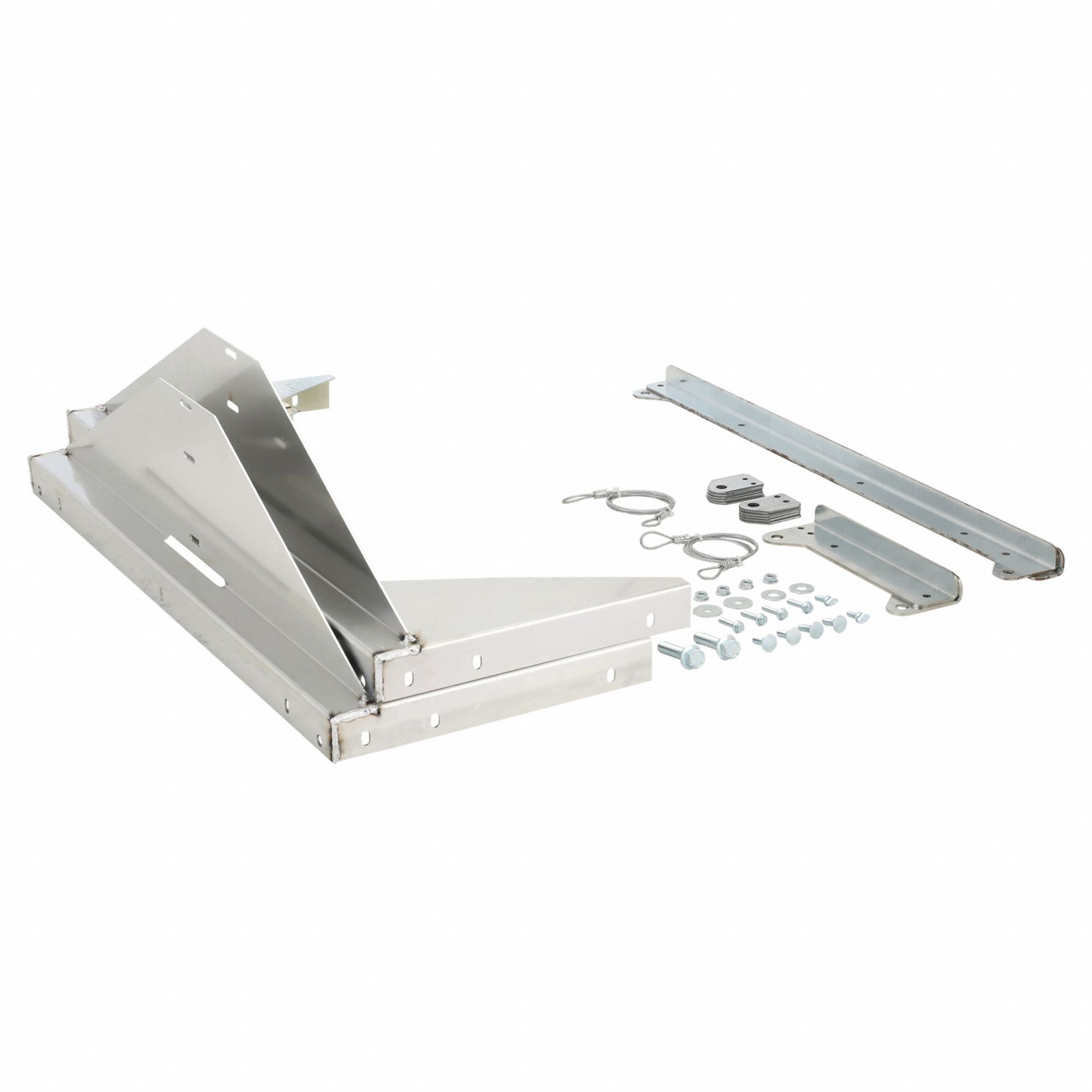

The Dayton Hinge Kit: 46 in Square Base (SKU 20CK56) is a maintenance access kit for Dayton Roof Mounted Centrifugal Upblast Ventilators with a 46 in square base. Made of galvanized steel with a galvanized finish, it includes reinforcement angles and is AMCA-listed. Compatible with Grainger SKU 4YY22 and manufacturer model CUBE-360HP, this kit is designed for roof-mounted upblast fans.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | For Roof Mount Mount, Mfr Part # 20CK56 |
| Brand | DAYTON |
| Finish | Galvanized |
| Includes | Reinforcement Angles |
| Material | Galvanized Steel |
| Standards | AMCA |
| Overall Lg | 46 in |
| For Fan Type | Upblast Fans |
| For Use With | Dayton Roof Mounted Centrifugal Upblast Ventilators Having a 46 in Square Base |
| Product Type | Hinge Kit |
| For Fan Mounting Type | Roof Mount |
| Compatible Grainger SKU | 4YY22 |
| Manufacturer Part Number | 20CK56 |
| Compatible Manufacturer Model Number | CUBE-360HP |
