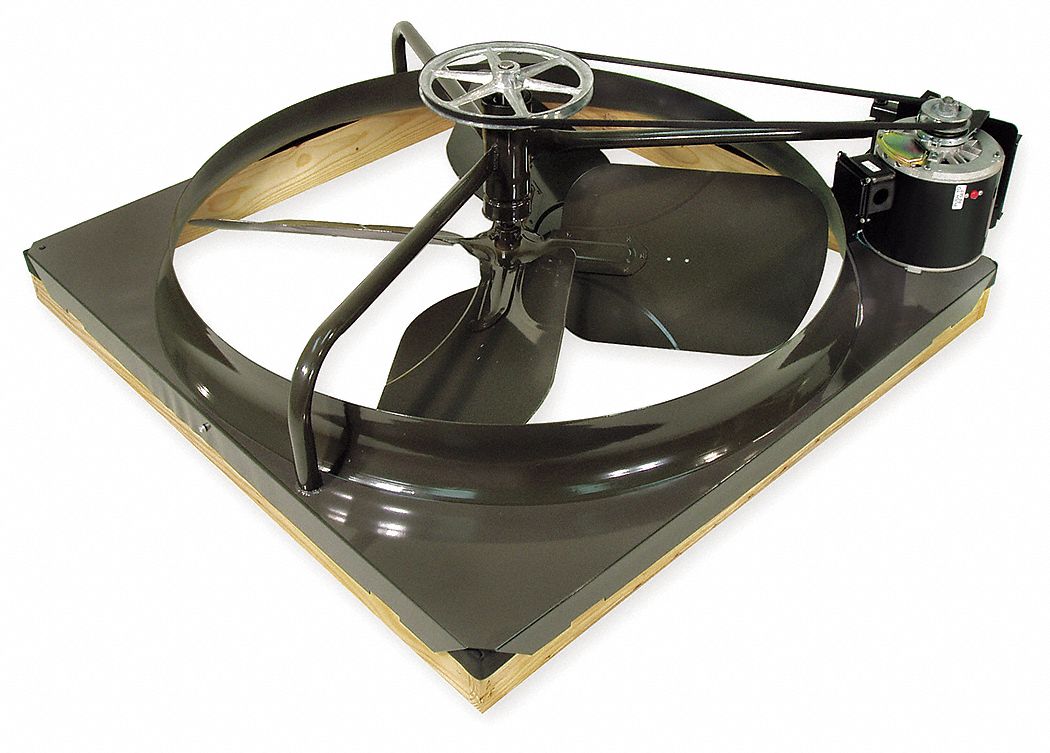

Dayton 3G-OTH-79852 — Technical Specifications

Name: Dayton 3G-OTH-79852 Whole House Fan: Ceiling Mount, 24 in Blade, 5,600 cfm Max., 800 sq ft Coverage, Belt Drive, 115V AC (MPN 2EAX5). Key specifications — Mounting Location: Ceiling; Quiet Design: No; Speed Controllable: Yes; Rough Opening Type: Square; Brand: DAYTON; Fan Style: Whole-House; For High-Static Pressure Applications: No; High-Efficiency Motor: No.
Brand: Dayton

The Dayton 2EAX5 is a ceiling-mount whole house fan with a 24-inch blade, delivering a maximum airflow of 5,600 cfm and covering up to 800 sq ft. It operates on 115V AC, single-phase power, features two speeds, and is speed controllable. This standard-efficiency motor fan is designed for square rough openings and is not intended for high-static pressure applications.

View Product & Quote

Technical Specifications

Parameter	Value
AC	115V
Max.	5,600 cfm
Type	800 sq ft Coverage, Belt Drive
Blade	24 in
Brand	DAYTON
Fan Style	Whole-House
Quiet Design	No
Nominal Voltage	115V AC, Single Phase
Number Of Speeds	2
Mounting Location	Ceiling
Nameplate Voltage	115V AC
Rough Opening Type	Square
Speed Controllable	Yes
High-Efficiency Motor	No
Motor Efficiency Broad	Standard-Efficiency Motor
Maximum Airflow - Range	5,000 to 10,000 cfm
Manufacturer Part Number	2EAX5
For High-Static Pressure Applications	No
