Dayton 3G-OTH-36548 — Technical Specifications

Name: Dayton 3G-OTH-36548 DAYTON Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, 2NO/2NC (MPN 31XH91). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained; Cam: E; DC Contact Rating: 0.55 A @ 125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Plastic; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Dayton

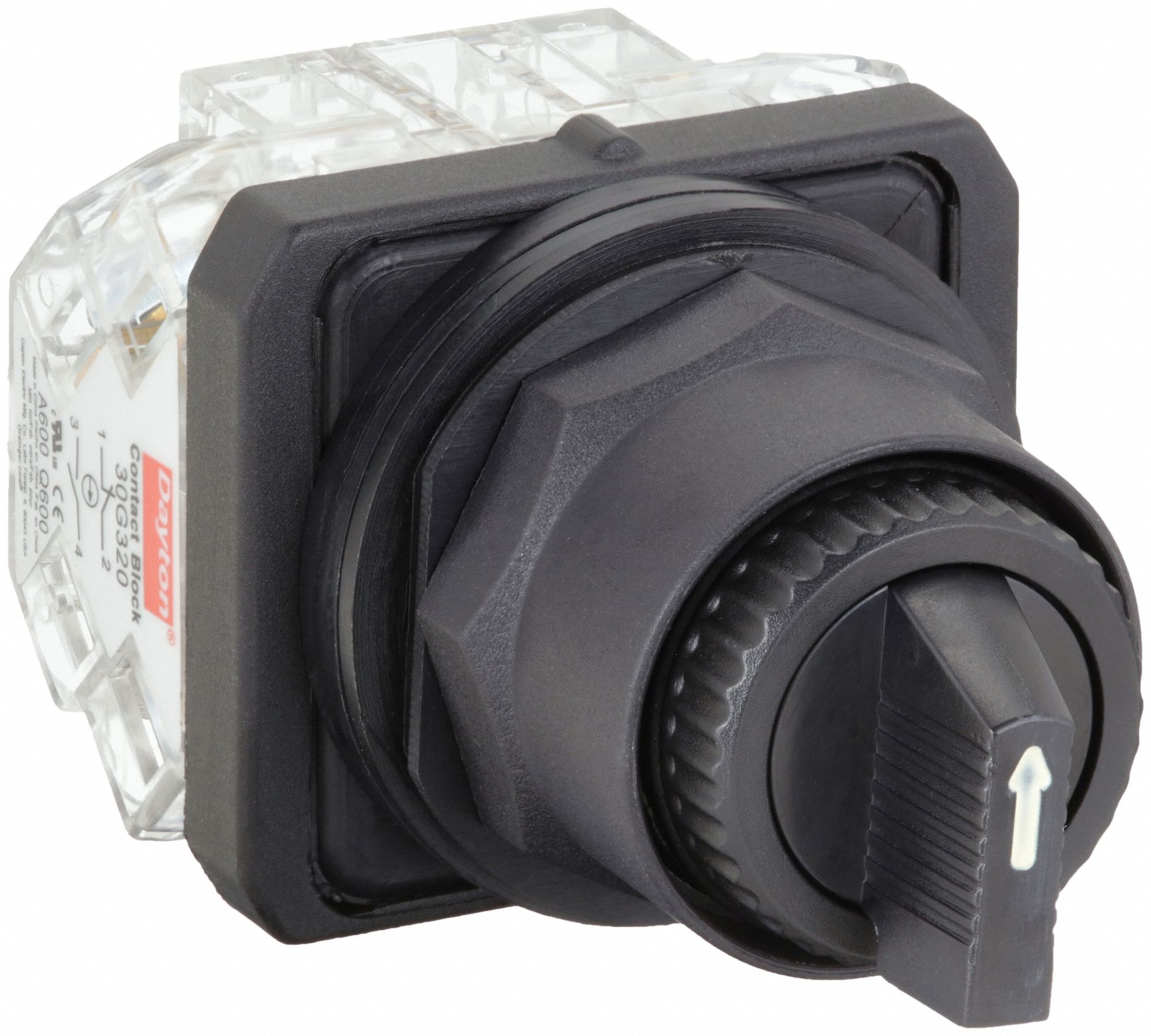

The DAYTON 31XH91 is a 30 mm panel-mounting selector switch with a long-handled knob and a maintained/maintained action. It features a plastic operator head, non-metallic bezel, and is non-illuminated. The switch offers two positions (On/On) with an AC contact rating of 10 A @ 600 V and a DC contact rating of 0.55 A @ 125 V, and is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	E
Type	Extended Lever, 2NO/2NC
Brand	DAYTON
Action	Maintained/Maintained
Positions	2
AC Contact Rating	10 A @ 600 V
DC Contact Rating	0.55 A @ 125 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Plastic
Manufacturer Part Number	31XH91
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
