Dayton 3G-OTH-78570 — Technical Specifications

Name: Dayton 3G-OTH-78570 Attic Exhaust Fan: Gable Mount, Electric Motor, Max. 1,500 sq ft Attic, 1,060 cfm Max., Thermostat (MPN 347HY1). Key specifications — Includes: Guard; Includes Humidistat: No; Includes Shutter: No; Includes Thermostat: Yes; Mounting Location: Gable; Nameplate Voltage: 120V AC; High-Efficiency Motor: No; Brand: DAYTON.
Brand: Dayton

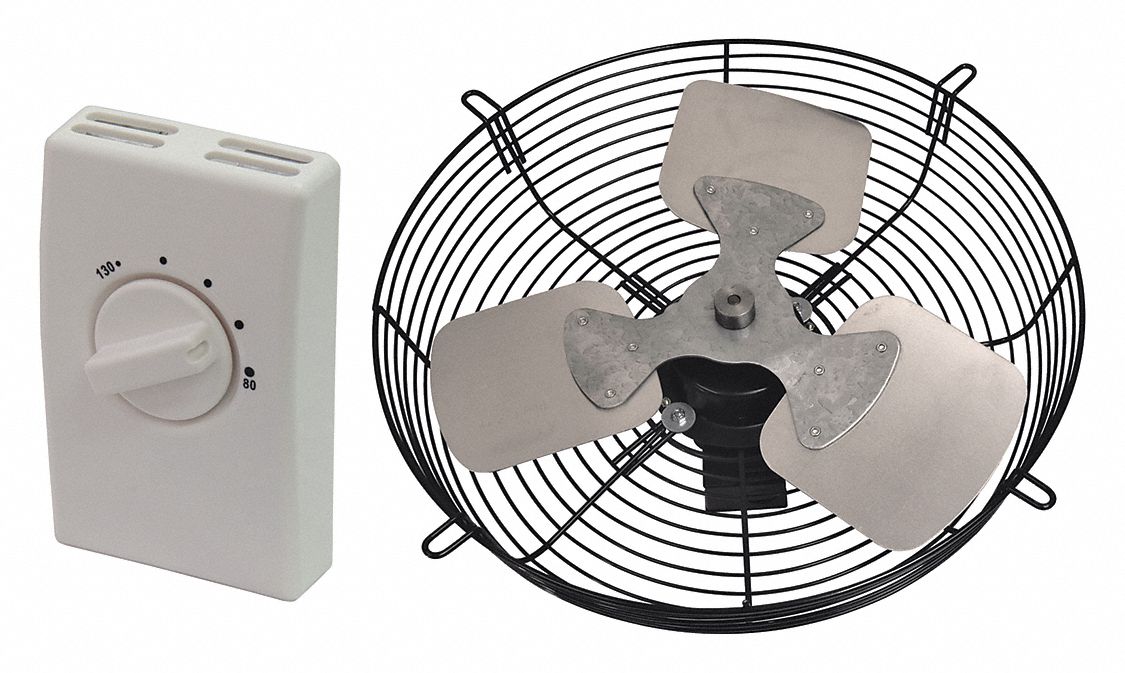

The Dayton 347HY1 is a gable-mount attic exhaust fan with a standard-efficiency electric motor. It operates at 120V AC and 1.0 A, delivering up to 1,060 cfm of exhaust airflow for attics up to 1,500 sq ft. The unit includes a guard and a built-in thermostat for temperature control, but does not include a humidistat or shutter.

View Product & Quote

Technical Specifications

Parameter	Value
Max.	1,060 cfm
Type	Electric Motor, Max. 1,500 sq ft Attic, Thermostat
Brand	DAYTON
Current	1.0 A
Features	Temperature Control
Includes	Guard
Includes Shutter	No
Mounting Location	Gable
Nameplate Voltage	120V AC
Includes Humidistat	No
Includes Thermostat	Yes
Fire Safety Shut-Off	No
High-Efficiency Motor	No
Manufacturer Part Number	347HY1
Power Source/High-Efficiency Motors	Standard-Efficiency Motor
Exhaust Airflow @ 0.000 In SP - Range	1,000 to 1,499 cfm
For High-Static Pressure Applications	No
