Dayton 3G-OTH-103446 — Technical Specifications

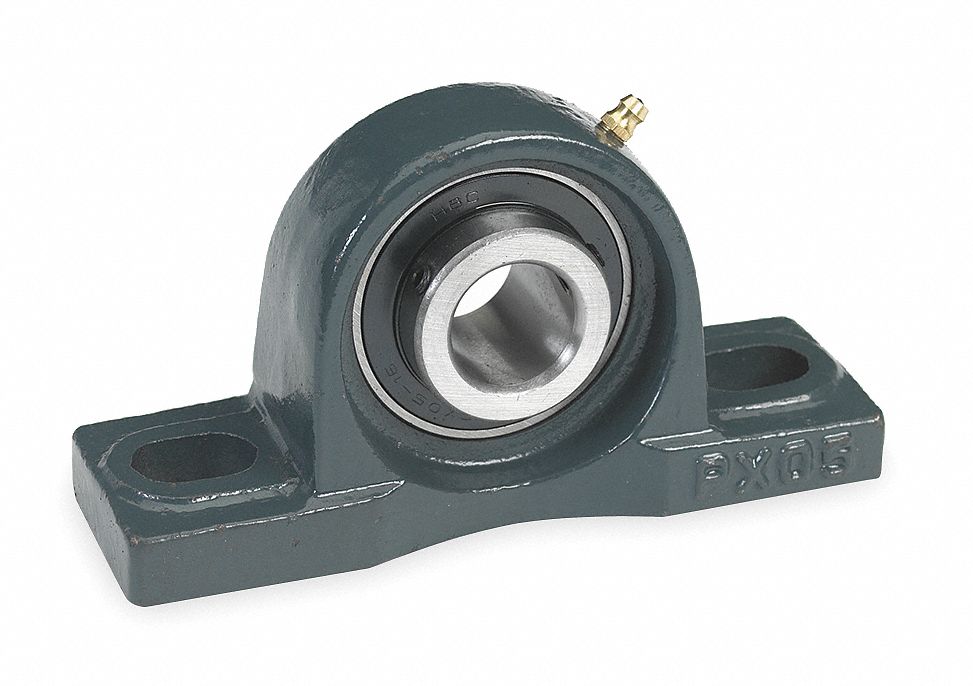

The DAYTON Pillow Block Bearing (SKU 3FDD3) is a medium duty pillow block ball bearing with a 2 7/16 in bore, designed for inch-system applications. It features a cast iron housing, set screw locking, a 3 in shaft height, and a maximum operating temperature of 200°F. The mounting bolt size is 3/4 in.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Cast Iron, Set Screws |
| Brand | DAYTON |
| Max Temp | 200°F |
| Shaft Ht | 3 in |
| Mounting Bolt Size | 3/4 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | 3FDD3 |
