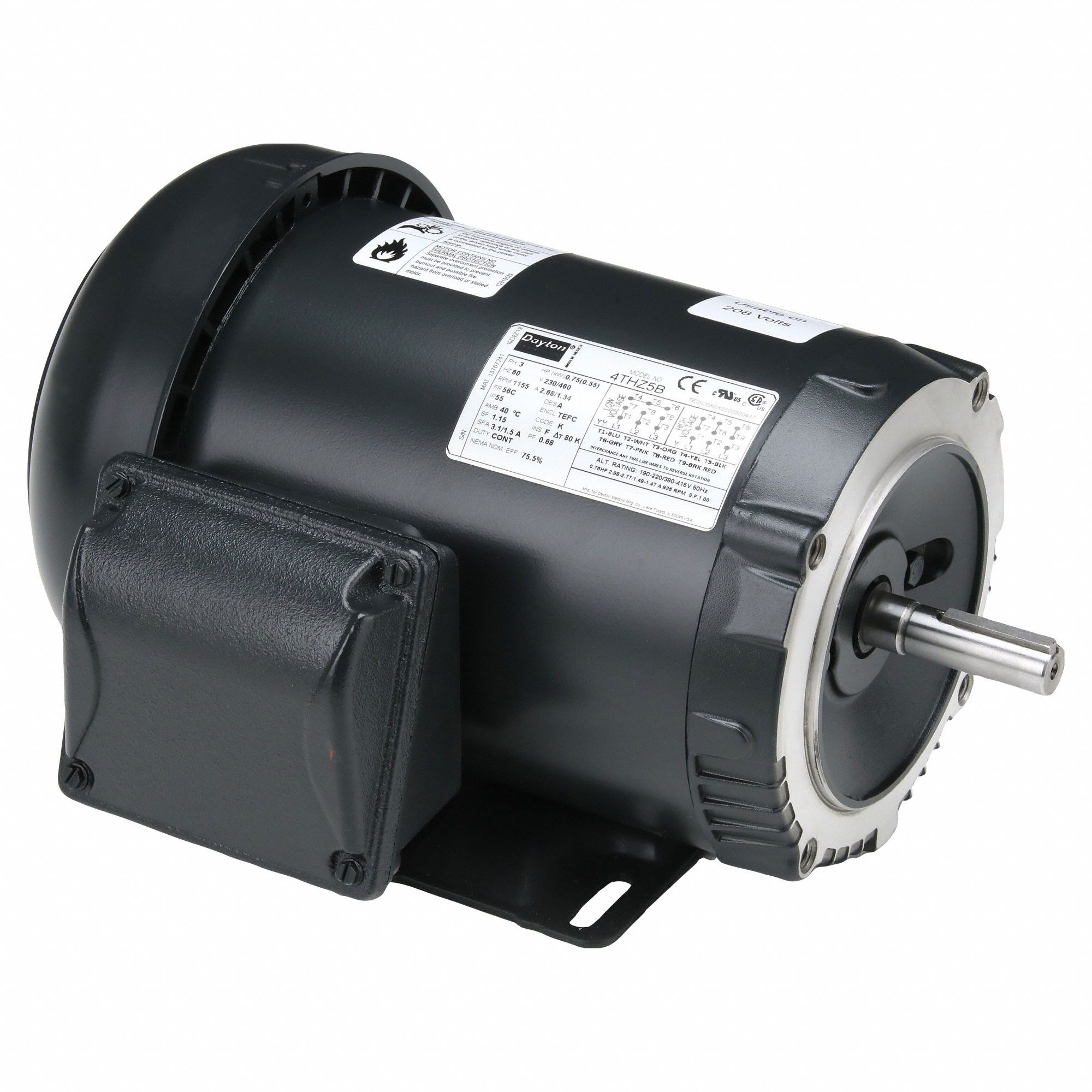

Dayton 3G-OTH-55563 — Technical Specifications

Name: Dayton 3G-OTH-55563 DAYTON General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 3/4 hp (MPN 4THZ5). Key specifications — Brand: DAYTON; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 2.68/1.34 A; Nameplate RPM @ 60 Hz: 1,135 RPM; Motor Enclosure: TEFC.
Brand: Dayton

The DAYTON General Purpose Motor (SKU 4THZ5) is a C-Face with Rigid Base 3-Phase AC motor featuring a TEFC enclosure. It operates at 1,135 RPM at 60 Hz with a full load current of 2.68/1.34 A and a nameplate voltage of 230/460V AC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 3/4 hp
Brand	DAYTON
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,135 RPM
Manufacturer Part Number	4THZ5
Full Load Current @ 60 Hz	2.68/1.34 A
Nameplate Voltage @ 60 Hz	230/460V AC
