Dayton 3G-OTH-115729 — Technical Specifications

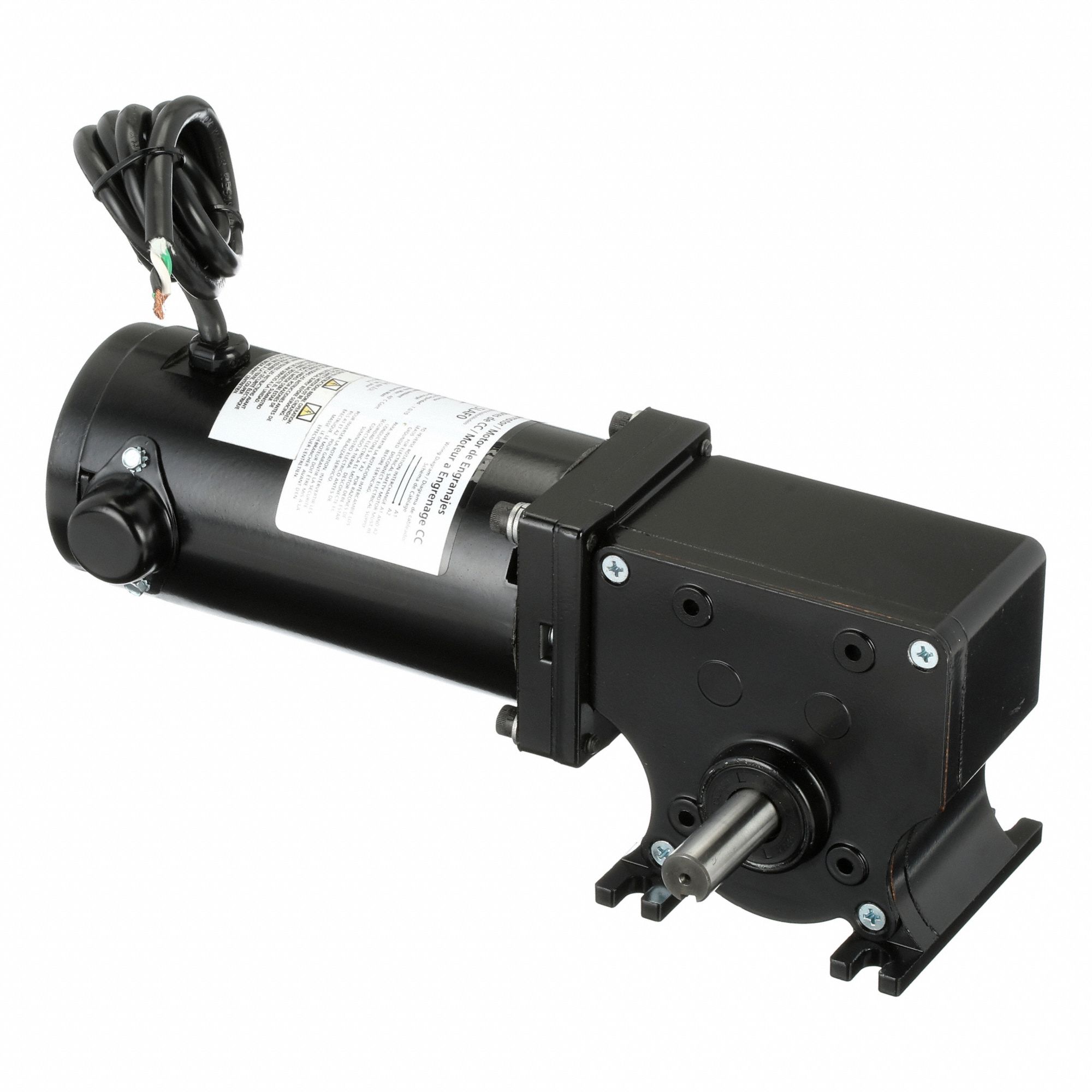

The DAYTON DC Gearmotor: Right Angle (SKU 5LAF0) is a permanent magnet DC motor with a right-angle gearbox, delivering 40 RPM and 196 in-lb max torque at a 44:1 ratio. It operates on 90V DC with a full load current of 1.72 A, features a TENV enclosure, and supports bidirectional rotation (CW/CCW).
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | TENV, 40 RPM, 196 in-lb Max Torque, 1.72 A, CW/CCW |
| Brand | DAYTON |
| Motor Type | Permanent Magnet DC |
| Full Load Current | 1.72 A |
| Manufacturer Part Number | 5LAF0 |
