Dayton 3G-OTH-77399 — Technical Specifications

Name: Dayton 3G-OTH-77399 DAYTON Tubeaxial Fan: Flammable Vapor, 12 in Blade, 1,904 cfm @ 0.000 in SP, 208-230/460V AC, 1/2 hp (MPN 7AF36). Key specifications — Brand: DAYTON; Includes Drive Package: Yes; Spark Resistant Construction Type: B; Assembly: Unassembled; Nameplate Voltage: 208-230/460V AC; Mounting Orientation: Horizontal; Hazardous Location Specification: Class I Group C; Class I Group D.
Brand: Dayton

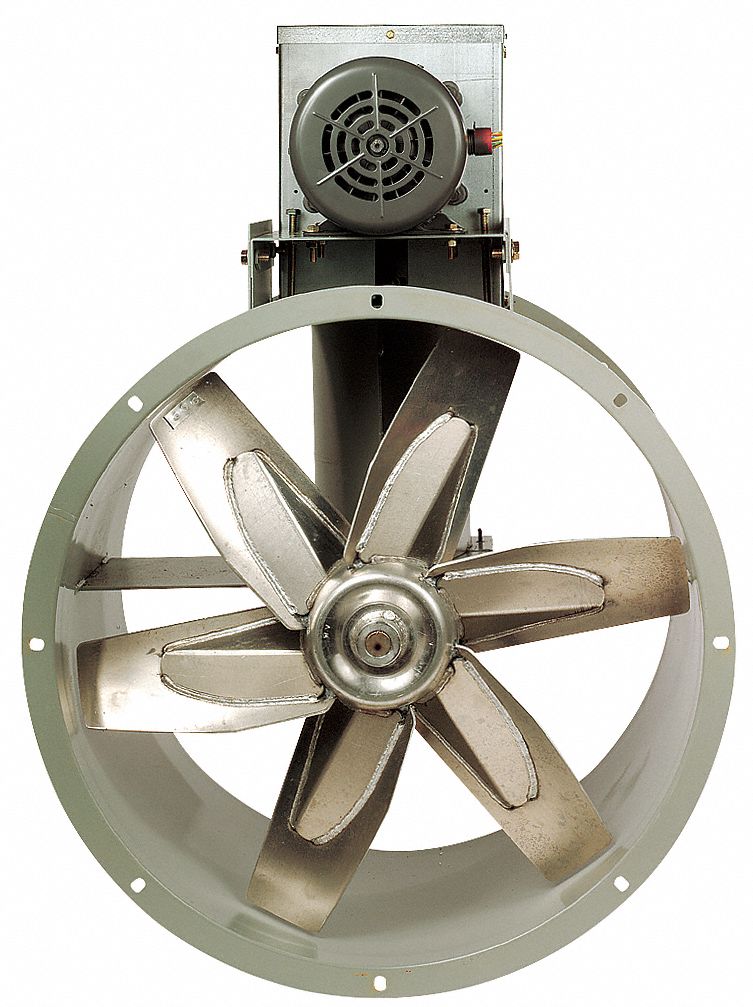

The DAYTON Tubeaxial Fan: Flammable Vapor (MPN 7AF36) is an unassembled, Class I Group C and D hazardous-location belt-drive fan with a 12-inch blade, delivering 1,904 cfm at 0.000 in SP. It features a 1/2 hp, 3-phase, totally enclosed fan-cooled motor with a single speed and nameplate voltage of 208-230/460V AC. The unit includes a drive package, has a B-type spark-resistant construction, and is designed for horizontal mounting.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	DAYTON
Assembly	Unassembled
Motor Type	3-Phase
Motor Enclosure	Totally Enclosed Fan Cooled
Number Of Speeds	1
Nameplate Voltage	208-230/460V AC
Mounting Orientation	Horizontal
Includes Drive Package	Yes
Manufacturer Part Number	7AF36
Airflow @ 0.000 In SP - Range	0 to 9,999 cfm
Hazardous Location Specification	Class I Group C
Spark Resistant Construction Type	B
