Dayton 3G-OTH-80957 — Technical Specifications

Name: Dayton 3G-OTH-80957 Exhaust Fan with Drive Package: Belt Drive, 30 in Blade, 3/4 hp, 11,169 cfm, 208-230/460V AC, 3 ph (MPN 7M7Y8). Key specifications — Frame Finish: Zinc Plated; Assembled: Unassembled; Brand: DAYTON; Nameplate Voltage: 208-230/460V AC; Frame Material: Steel; Guard Type: None; Motor Type: 3-Phase; Motor Insulation: Class B.
Brand: Dayton

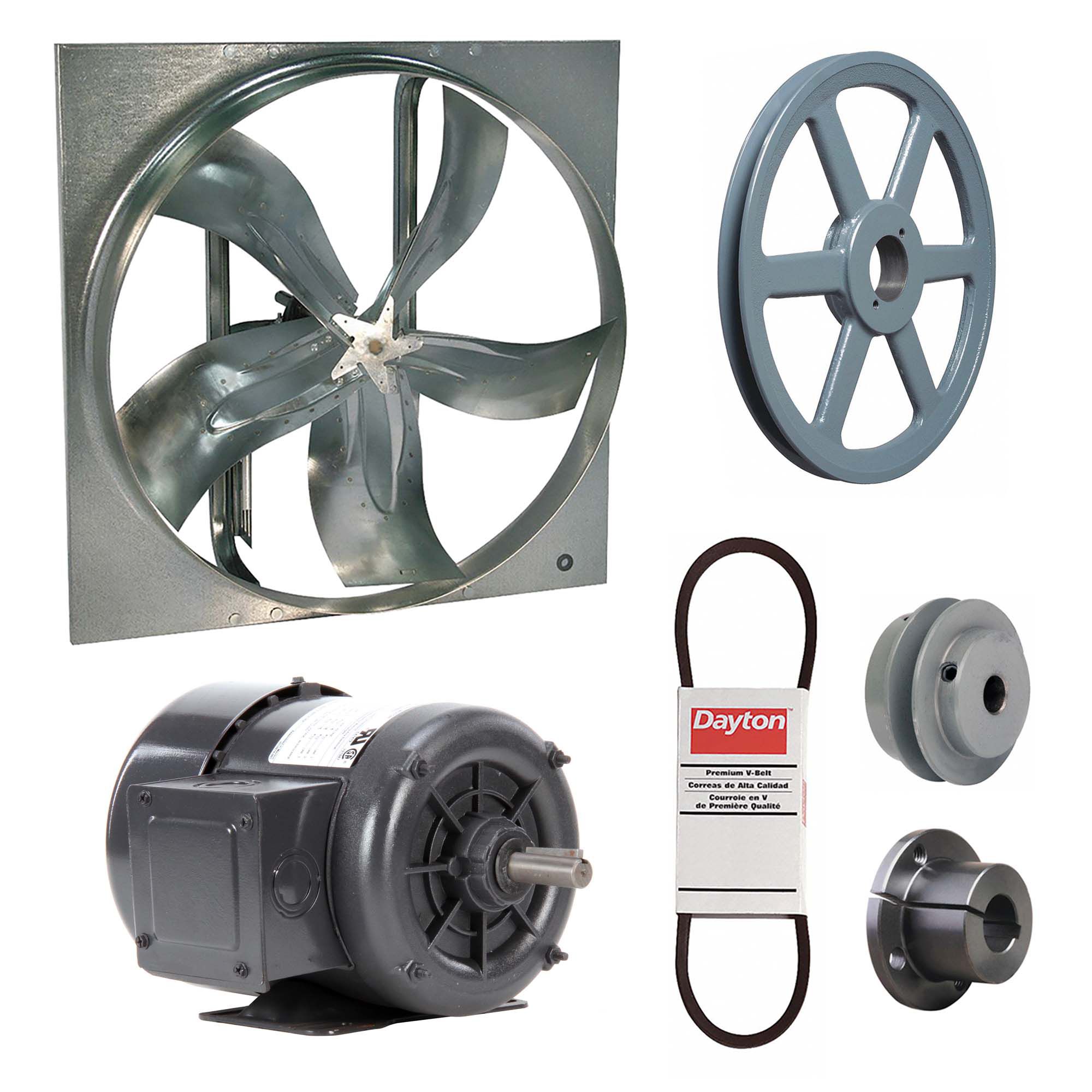

The Dayton 7M7Y8 is an unassembled belt-drive panel exhaust fan with a drive package, featuring a 30-inch blade, 3/4 hp motor, and 11,169 cfm airflow. It operates on 208-230/460V AC, 3-phase power with a single-speed, totally enclosed fan-cooled motor (Class B insulation). The fan has a zinc-plated steel frame and is supplied without intake guards.

View Product & Quote

Technical Specifications

Parameter	Value
AC	208-230/460V
Type	3/4 hp, 11,169 cfm, 3 ph
Blade	30 in
Brand	DAYTON
Assembled	Unassembled
Guard Type	None
Motor Type	3-Phase
Frame Finish	Zinc Plated
Frame Material	Steel
Motor Enclosure	Totally Enclosed Fan Cooled
Enclosure Design	Totally Enclosed Motor
Motor Insulation	Class B
Number Of Speeds	1
Nameplate Voltage	208-230/460V AC
Guard Type Subheads	Without Intake Guards
Manufacturer Part Number	7M7Y8
